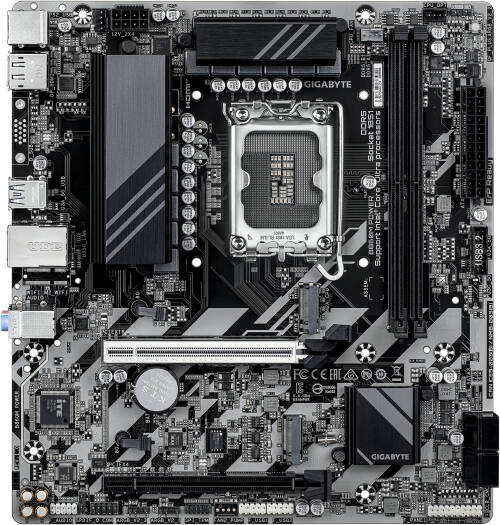

GIGABYTE B860M POWER LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x PCIe 4.0 M.2 Slots | B860M-POWER

CPU

LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU)

Chipset

Intel® B860 Express

Memory

DDR5 9066(O.C)–5600 MT/s, 2 x DDR5 DIMM, up to 128 GB, dual channel, ECC/Non-ECC, XMP supported

Onboard Graphics

1 x HDMI (4096x2160@60Hz, HDMI 2.1), 1 x DisplayPort (3840x2160@144Hz, DP 2.1), triple display support

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF Out, HD Audio

LAN

Realtek® 2.5GbE (2.5/1 Gbps/100 Mbps)

Expansion Slots

1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)

Storage

2 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

5 x USB 3.2 Gen 1 (3 rear, 2 internal), 7 x USB 2.0 (3 rear, 4 internal)

Internal Connectors

24-pin ATX, 8-pin ATX 12V, CPU/system/pump fan headers, 3 x ARGB Gen2, 2 x M.2, 4 x SATA, front panel/audio/SPDIF, USB 3.2 Gen 1, 2 x USB 2.0, TPM, serial port, Q-Flash Plus, reset, Clear CMOS

Back Panel I/O

3 x USB 2.0, 1 x PS/2, 1 x HDMI, 1 x DP, 3 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks

I/O Controller

iTE® Controller Chip

H/W Monitoring

Voltage, temp, fan speed, water flow detection, fan fail warning, speed control

BIOS

AMI UEFI BIOS, 256 Mbit, PnP 1.0a, DMI 2.7, ACPI 5.0, etc.

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Software

Norton Internet Security (OEM), LAN management software

OS Support

Windows 11/10 64-bit (NPU driver only on Win 11)

Form Factor

Micro ATX, 24.4 cm x 22.5 cm
