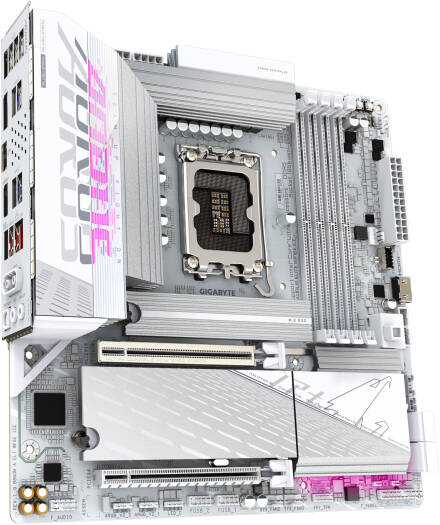

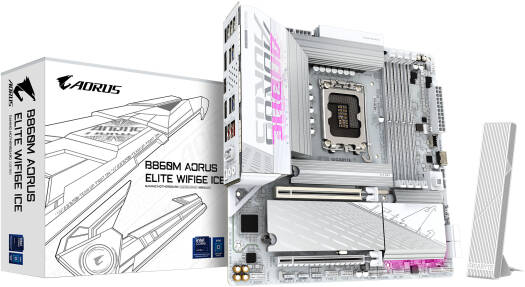

GIGABYTE B860M Aorus Elite Ice LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White | B860M-A-ELT-WF6E-ICE - Image 1
1 / 5

GIGABYTE B860M Aorus Elite Ice LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White | B860M-A-ELT-WF6E-ICE

Brand: Gigabyte|Category: Motherboards|SKU: 10460|Model: B860M-A-ELT-WF6E-ICE
AED 878.00

  • Supports Intel® Core™ Ultra processors (Series 2)

  • Digital twin 12+1+2 phases VRM solution

  • Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

  • Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

LGA1851 socket, Intel® Core™ Ultra Processors, L3 cache varies

Chipset

Intel® B860 Express Chipset

Memory

DDR5 up to 9200(O.C.), 4x DIMM slots, max 256GB, ECC & non-ECC, XMP support

Onboard Graphics

Intel® HD Graphics, 1x USB4 Type-C (DP 2.1, 3840x2160@144Hz), 1x DisplayPort (DP 2.1, 3840x2160@144Hz), 1x HDMI 2.1 (4096x2160@60Hz), 1x Front HDMI 1.4 (1920x1080@30Hz), Quad-display support

Audio

Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out

LAN

Realtek® 2.5GbE (2.5G/1G/100M)

Wireless

Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3

Expansion Slots

1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset)

Storage

1x M.2 PCIe 5.0 (CPU), 2x M.2 PCIe 4.0 (Chipset), 4x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

1x USB4 Type-C, 1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-A, 6x USB 3.2 Gen 1, 8x USB 2.0

Internal I/O

1x 24-pin ATX, 2x 8-pin ATX 12V, 3x M.2, 4x SATA, RGB headers, USB headers, TPM header, Thunderbolt™ add-in card connectors, Power & Reset buttons, Q-Flash Plus button

Back Panel

4x USB 2.0, 4x USB 3.2 Gen 1, 1x USB4 Type-C (DP), 1x HDMI, 1x DP, 2x USB 3.2 Gen 2 Type-A, 1x RJ-45, 2x antenna, 2x audio jacks, 1x optical S/PDIF Out

BIOS

256 Mbit flash, AMI UEFI, Q-Flash, Smart Backup

OS Support

Windows 11 64-bit

Form Factor

Micro ATX (24.4cm x 24.4cm)
