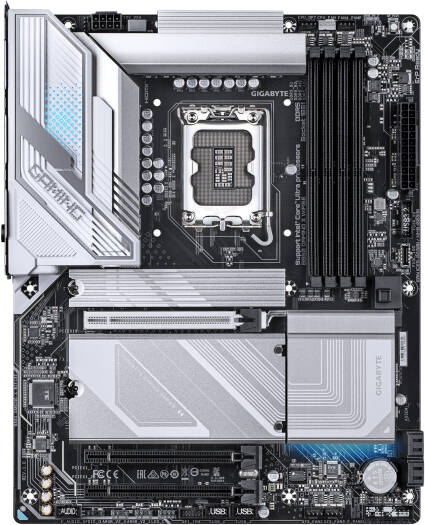

GIGABYTE B860 Gaming X WIFI6E LGA 1851 ATX Motherboard, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3 Connectivity | B860-GAMING-X-WIFI6E - Image 1
1 / 4

GIGABYTE B860 Gaming X WIFI6E LGA 1851 ATX Motherboard, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3 Connectivity | B860-GAMING-X-WIFI6E

Brand: Gigabyte|Category: Motherboards|SKU: 10447|Model: B860-GAMING-X-WIFI6E
AED 930.00

  • Supports Intel® Core™ Ultra processors (Series 2)

  • Twin Hybrid 12+1+2 phases VRM solution

  • D5 Bionic Corsa for Infinite Memory Performance

  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design | EZ-Latch Click : M.2 heatsinks with screwless design

  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

LGA1851, supports Intel® Core™ Ultra Processors

Chipset

Intel® B860 Express Chipset

Memory

DDR5 up to 9066(O.C), 4x DIMM, max 256GB, dual channel, ECC/non-ECC, XMP support

Graphics

Integrated Intel® HD Graphics
- USB4 Type-C (3840x2160@144Hz)
- HDMI 2.1 (4096x2160@60Hz)
- DisplayPort 2.1 (3840x2160@144Hz)

Audio

Realtek® Audio CODEC, 7.1-channel, S/PDIF Out

LAN

Realtek® 2.5GbE

Wireless

Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE, BT 5.3

Expansion Slots

1x PCIe 5.0 x16, 2x PCIe 4.0 x1

Storage

3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

1x USB4 Type-C (rear), 1x USB-C 3.2 Gen2 (internal), 1x USB 3.2 Gen2 Type-A (rear), 4x USB 3.2 Gen1, 9x USB 2.0

Internal I/O

24-pin ATX, 8-pin ATX12V, 5x fan headers, 4x SATA, 3x M.2, RGB headers, USB headers, TPM header, Q-Flash button

Back I/O

HDMI, DP, USB4-C, USB 3.2, USB 2.0, LAN, audio jacks, antenna connectors

Monitoring

Voltage, temperature, fan speed, water flow, warnings

BIOS

AMI UEFI, 256Mbit flash, Q-Flash, Q-Flash Plus

Features

GCC support, Smart Backup

Software

Norton® Internet Security, LAN manager

OS Support

Windows 11 64-bit

Form Factor

ATX, 30.5 x 24.4 cm
