GIGABYTE B850M Gaming X AM5 Micro ATX Motherboard, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi & BT Connectivity | B850M-GAMING-X-WF6E - Image 1
1 / 4

GIGABYTE B850M Gaming X AM5 Micro ATX Motherboard, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi & BT Connectivity | B850M-GAMING-X-WF6E

Brand: Gigabyte|Category: Motherboards|SKU: 10647|Model: B850M-GAMING-X-WF6E
AED 799.00

  • DDR5 OC up to 8200MT/s

  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors

Chipset

AMD B850

Memory

DDR5 up to 8200(O.C.), 4x DIMM slots, max 256GB, Dual-channel, AMD EXPO™ & XMP support

Onboard Graphics

AMD Radeon™ Graphics, 1x HDMI 2.1 (4096x2160@60Hz), 2x DisplayPort 1.4 (3840x2160@144Hz), triple-display support

Audio

Realtek® Audio CODEC, HD Audio, 7.1-channel

LAN

Realtek® 2.5GbE (2.5G/1G/100M)

Wireless

Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3, 11ax 160MHz support

Expansion Slots

1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x8 (Ryzen 8000-Phoenix 1), 1x PCIe 4.0 x4 (Ryzen 8000-Phoenix 2), 1x PCIe 3.0 x4 (Chipset)

Storage

2x M.2 (PCIe 5.0/4.0, CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 (RAID 5 only on Ryzen 9000)

USB Ports

1x USB 3.2 Gen 2 Type-C (rear), 1x USB 3.2 Gen 2 Type-A (rear), 2x USB 3.2 Gen 1 (rear), 4x USB 2.0 (rear), 1x USB 3.2 Gen 2 Type-C (internal), 2x USB 3.2 Gen 1 (internal), 4x USB 2.0 (internal)

Internal I/O

1x 24-pin ATX, 1x 8-pin ATX 12V, 2x M.2, 4x SATA, RGB headers, USB headers, TPM header, Reset button, Clear CMOS jumper

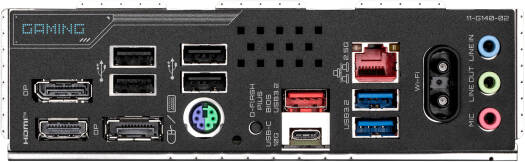

Back Panel

1x HDMI, 2x DisplayPort, 1x PS/2 keyboard/mouse, 1x Q-Flash Plus button, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0, 1x RJ-45, 2x antenna connectors, 3x audio jacks

BIOS

256 Mbit flash, AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup

OS Support

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX (24.4cm x 24.4cm)
