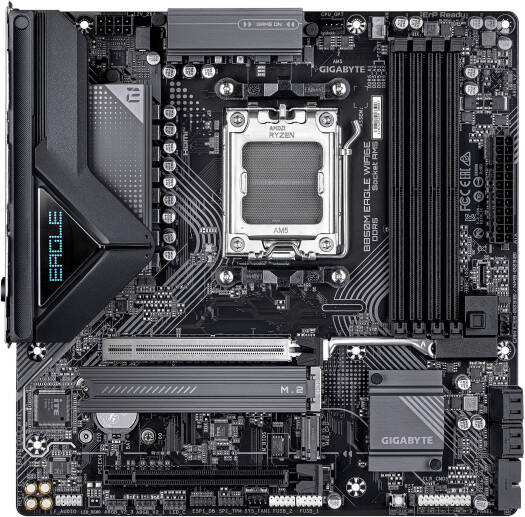

GIGABYTE B850M EAGLE WIFI6E AM5 Micro ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 Slots, 2x M.2 Slots, WiFi 6E & BT 5.3 | B850M-EAGLE-WF6E

CPU

AMD Socket AM5 Supports Ryzen™ 9000 / 8000 / 7000 Series (see GIGABYTE website for latest list)

Chipset

AMD B850

Memory

4× DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel DDR5 8200(O.C)–4400 MT/s supported Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO™ & XMP

Onboard Graphics

Integrated AMD Radeon™ Graphics
• 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR)
• 2× DisplayPort (3840×2160@144Hz, DP 1.4) Supports up to triple-display (CPU dependent)

Audio

Realtek® Audio CODEC HD Audio, 2/4/5.1/7.1-channel (software configurable)

LAN

Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)

Wireless

Realtek® Wi-Fi 6E RTL8852CE Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) Bluetooth® 5.3 11ax 160MHz

Expansion Slots

• CPU: 1× PCIe x16 (Ryzen 9000/7000 = PCIe 5.0 x16; Ryzen 8000 Phoenix 1 = PCIe 4.0 x8; Ryzen 8000 Phoenix 2 = PCIe 4.0 x4)
• Chipset: 1× PCIe x16 (PCIe 3.0 x4)

Storage

• CPU: 2× M.2 (M2A_CPU 25110/22110/2580/2280 PCIe 5.0/4.0; M2B_CPU 22110/2280 PCIe 4.0)
• Chipset: 4× SATA 6Gb/s RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000) RAID 0/1/10 for SATA

USB

• CPU: 1× USB-C (3.2 Gen2, rear), 1× USB 3.2 Gen2 Type-A (red, rear), 4× USB 2.0 (rear)
• Chipset: 1× USB-C (3.2 Gen2, internal), 4× USB 3.2 Gen1 (2 rear, 2 internal), 4× USB 2.0 (internal)

Internal I/O

24-pin ATX, 8-pin ATX 12V 1× CPU fan, 1× CPU fan/pump 1× system fan, 1× system fan/pump 3× ARGB Gen2, 1× RGB header 4× SATA, 2× M.2 Front panel, audio, USB-C (3.2 Gen2), USB 3.2 Gen1, 2× USB 2.0 TPM header Reset button, reset jumper, Clear CMOS

Back Panel

1× HDMI 2× DisplayPort 1× Q-Flash Plus button 1× PS/2 keyboard/mouse 1× USB 3.2 Gen2 Type-A (red), 1× USB-C (3.2 Gen2) 2× USB 3.2 Gen1, 4× USB 2.0 1× RJ-45 2× Wi-Fi antenna (2T2R) 3× audio jacks

I/O Controller

iTE® Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, water flow rate Fan fail warning, fan/pump speed control

BIOS

256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM) LAN bandwidth management

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX, 24.4 × 24.4 cm
