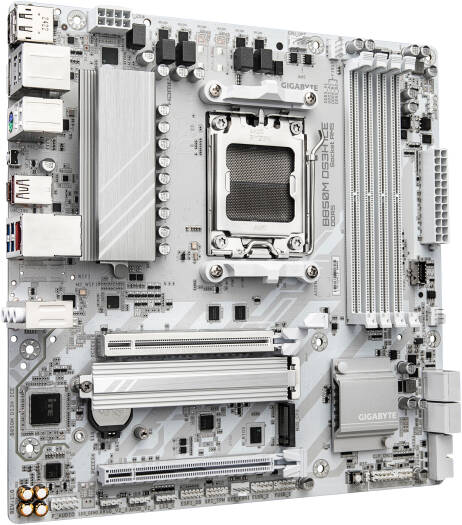

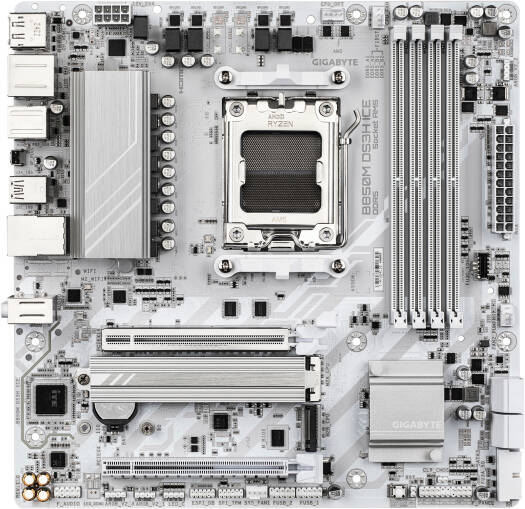

GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE - Image 1
1 / 4

GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White | B850M-DS3H-ICE

Brand: Gigabyte|Category: Motherboards|SKU: 10630|Model: B850M-DS3H-ICE
AED 607.00

  • X3D Turbo Mode : Unleash new era gaming performance

  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Digital twin 8+2+2 phases VRM solution

  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

  • EZ-Latch : PCIe x16 Slot with Quick Release Design

  • M.2 EZ-Latch Plus : screwless installation for M.2 SSDs

  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU Support

AMD Socket AM5 (Ryzen™ 9000, 8000, 7000 Series)

Chipset

AMD B850

Memory

DDR5 up to 8200(OC), 4x DIMMs, 256 GB max, dual channel, AMD EXPO™ & XMP support

Integrated Graphics

1x HDMI 2.1 (4096x2160@60Hz), 2x DP 1.4 (3840x2160@144Hz), up to triple display

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-channel, HD Audio

LAN

Realtek® 2.5GbE LAN

Expansion Slots

1x PCIe x16 (CPU - varies by processor), 1x PCIe x16 (Chipset, x4 PCIe 3.0)

Storage

2x M.2 (varied PCIe 5.0/4.0), 4x SATA 6Gb/s, NVMe RAID 0/1/5/10 (RAID 5 on Ryzen 9000), SATA RAID 0/1/10

USB Ports

Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB 2.0; Internal: 1x USB-C Gen 2 header, 2x USB-A 3.2 Gen 1, 4x USB 2.0

Internal I/O

1x 24-pin ATX, 1x 8-pin CPU power, 4x SATA, 2x M.2, fan & RGB headers, TPM header, reset & CMOS jumpers

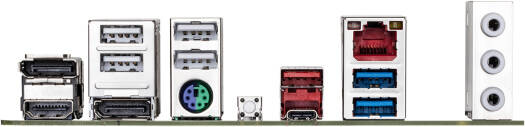

Back Panel I/O

1x HDMI, 2x DP, 1x PS/2, 1x USB-C, 3x USB-A (3.2 Gen 2 & Gen 1), 4x USB 2.0, 1x LAN, 3x audio jacks, Q-Flash Plus button

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temp, fan speed, water flow, fan fail warning, fan control

BIOS

256 Mbit AMI UEFI BIOS, Q-Flash, Smart Backup

Software

Norton Internet Security OEM, LAN bandwidth manager

OS Support

Windows 11/10 64-bit

Form Factor

Micro ATX (24.4 cm x 24.4 cm)
