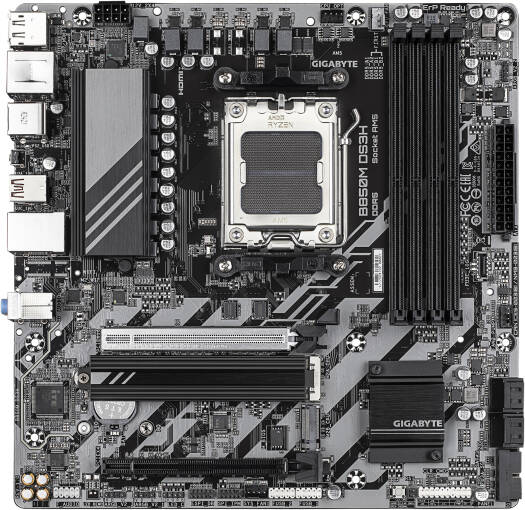

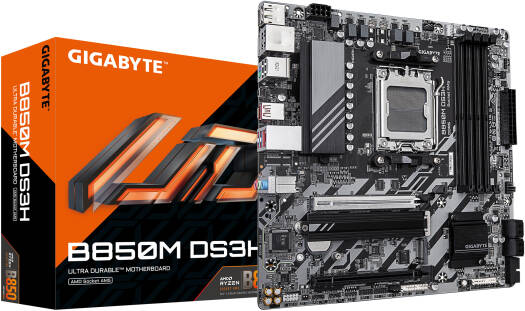

GIGABYTE B850M DS3H AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B850M-DS3H

CPU

AMD Socket AM5; Supports Ryzen™ 9000 / 8000 / 7000 Series

Chipset

AMD B850

Memory

4 x DDR5 DIMMs, up to 256GB, up to 8200 MT/s (OC); Dual channel, AMD EXPO™, XMP

Graphics

Integrated Radeon™ Graphics; 1 x HDMI (4096x2160@60Hz), 2 x DP (3840x2160@144Hz); triple-display

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio

LAN

Realtek® 2.5GbE LAN

Expansion Slots

1 x PCIe x16 (CPU): PCIe 5.0/4.0 (based on CPU)
1 x PCIe x16 (Chipset, x4, Gen3)

Storage

2 x M.2 (PCIe 5.0/4.0 based on CPU)
4 x SATA 6Gb/s; RAID 0/1/5*/10 NVMe, RAID 0/1/10 SATA

USB

Back Panel: 1 x USB-C (Gen2), 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0
Internal: USB-C (Gen2) header, USB 3.2 Gen1 header, 2 x USB 2.0 headers

Internal I/O

24-pin ATX, 8-pin ATX12V, CPU/system/pump fan headers, 2 x M.2, 4 x SATA, RGB/ARGB headers, TPM, reset/Clear CMOS

Back Panel

1 x HDMI, 2 x DP, 1 x USB-C (Gen2), 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks, 1 x PS/2, Q-Flash Plus

I/O Controller

iTE® I/O Controller Chip

Monitoring

Voltage, temperature, fan/pump speed, water flow, fan fail, fan speed control

BIOS

256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features

GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup

Software

Norton® Internet Security (OEM), LAN management software

OS Support

Windows 11/10 64-bit

Form Factor

Micro ATX; 24.4cm x 24.4cm
