GIGABYTE B850 GAMING X WIFI6E AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slot, Up to 256GB Max Memory, 1 x PCIe 5.0 x16, 3 x M.2 Slots, WiFi & BT, Black | B850-GAMING-X-WIFI6E - Image 1
1 / 3

GIGABYTE B850 GAMING X WIFI6E AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slot, Up to 256GB Max Memory, 1 x PCIe 5.0 x16, 3 x M.2 Slots, WiFi & BT, Black | B850-GAMING-X-WIFI6E

Brand: Gigabyte|Category: Motherboards|SKU: 10665|Model: B850-GAMING-X-WIFI6E
AED 869.00

  • X3D Turbo Mode : Unleash new era gaming performance

  • DDR5 OC up to 8200MT/s

  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Digital twin 12+2+2 phases VRM solution

  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

AMD Socket AM5, support for AMD Ryzen™ 9000, 8000, 7000 Series Processors (Check GIGABYTE's website for the latest CPU support list)

Chipset

AMD B850

Memory

DDR5 8200(O.C.) to 5200, 4 x DDR5 DIMM sockets, up to 256 GB, Dual Channel, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Support for AMD EXPO™ and XMP memory modules

Onboard Graphics

1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR), 1 x DisplayPort (3840x2160@144 Hz, DisplayPort 1.4)

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, configurable audio jack

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

Realtek® Wi-Fi 6E RTL8852CE, Wi-Fi 6 (a, b, g, n, ac, ax, 2.4/5/6 GHz), Bluetooth 5.3, 11ax 160MHz wireless standard

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

Storage Interface

3 x M.2 connectors (M2A_CPU, M2B_CPU, M2C_SB) supporting PCIe 5.0 x4/x2, PCIe 4.0 x4/x2, 4 x SATA 6Gb/s connectors, RAID support

USB

1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1, 3 x USB 2.0/1.1 (back panel), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 (internal)

Internal I/O Connectors

24-pin ATX power, 8-pin ATX 12V, 4-pin ATX 12V, 1 x CPU fan, 1 x system fan, 3 x M.2, 1 x USB Type-C® (USB 3.2 Gen 2x2), 2 x USB 2.0/1.1 headers

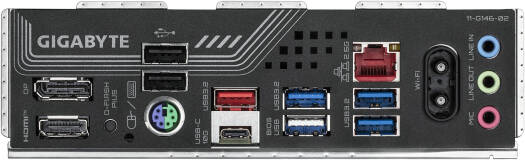

Back Panel Connectors

1 x DisplayPort, 1 x HDMI, 1 x Q-Flash Plus button, 1 x PS/2 port, 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1, 1 x RJ-45 port

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control

BIOS

256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
