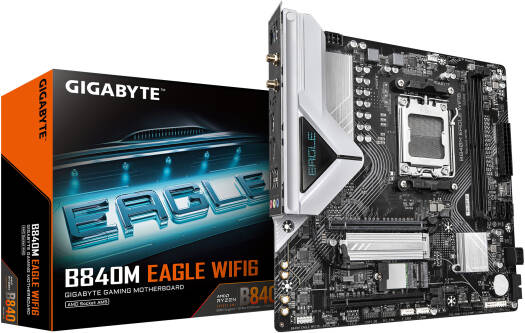

GIGABYTE B840M EAGLE WIFI6 M-ATX AM5 Motherboard, AMD B840 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 2 x M.2 Slots | B840M EAGLE WIFI6
X3D Turbo Mode ：Unleash new era gaming performance
AMD Socket AM5 ：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Dual Channel DDR5：2*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch ：PCIe and M.2 slots with Quick Release & Screwless Design | M.2 heatsinks with screwless design
Friendly UI ：Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage ：2*M.2 slots
Fast Networking ：2.5GbE LAN & Wi-Fi 6
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
CPU socket | AM5 |
CPU support | AMD Ryzen / AMD Ryzen / AMD Ryzen |
Chipset | AMD B840 |
Memory | 2× DDR5 DIMM, up to 128 GB, Dual-Channel |
Memory speeds | DDR5 7600(O.C.) down to 4400 MT/s |
Memory support | Non-ECC UDIMM, AMD EXPO™, XMP |
Onboard graphics | AMD Radeon™ Graphics (CPU-dependent) |
Video outputs | DP 1.4 (3840×2160@144Hz), HDMI 2.1 (4096×2160@60Hz) |
Audio | Realtek HD Audio, 2/4/5.1/7.1-ch |
LAN | Realtek 2.5GbE |
Wireless | Realtek RTL8851BE, Wi-Fi 6, Bluetooth 5.3 |
Expansion slots | 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x4 (Chipset) |
Storage (M.2) | 1× M.2 PCIe 4.0 x4 (CPU), 1× M.2 PCIe 3.0 x2 (Chipset) |
SATA | 4× SATA 6 Gb/s |
RAID (NVMe) | RAID 0/1/10, RAID 5 (Ryzen 9000 only) |
RAID (SATA) | RAID 0/1/10 |
USB (rear) | 2× USB 3.2 Gen1, 4× USB 2.0 |
USB (internal) | USB-C Gen1 ×1, USB 3.2 Gen1 ×2, USB 2.0 ×4 |
Internal connectors | ATX 24-pin, 8-pin CPU, fan/pump headers, RGB headers, TPM, CMOS |
Back panel | PS/2, DP, HDMI, USB, RJ-45, SMA antenna, audio jacks |
BIOS | AMI UEFI, 256 Mbit flash |
Features | Q-Flash, Q-Flash Plus, Smart Backup, GCC |
Bundled software | Norton® Internet Security (OEM) |
OS support | Windows 11 / Windows 10 |
Form factor | Micro-ATX |
Dimensions | 24.4 × 24.4 cm |
