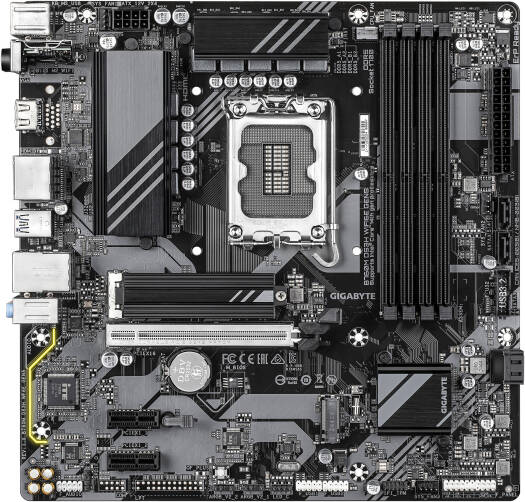

GIGABYTE B760M DS3H WIFI6E GEN5 LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WIFI 6E & BT 5.3 | B760M-DS3H-WF6E-GEN5

CPU

LGA1700 socket; supports Intel® 14th, 13th, 12th Gen Core™, Pentium® Gold, Celeron®

Chipset

Intel® B760 Express

Memory

Up to 256 GB DDR5; 4x DIMM; ECC/non-ECC Un-buffered DIMMs; Dual channel; XMP support

Memory Speeds

i9/i7 (13th/14th Gen): DDR5 5600/5200/4800/4400 MT/s
i5/i3 (13th), 12th Gen: DDR5 4800/4400 MT/s

Graphics

Intel® HD Graphics (depends on CPU);
HDMI (4096x2160@60Hz);
2x DP (4096x2304@60Hz);Triple display supported

Audio

Realtek® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out

LAN

Realtek® 2.5GbE LAN (2.5G/1G/100M)

Wireless

Intel® Wi-Fi 6E AX210; 2.4/5/6 GHz; BT 5.3; 11ax 160MHz

Expansion Slots

1x PCIe 5.0 x16 (CPU); 2x PCIe 3.0 x1 (Chipset)

Storage

2x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s; RAID 0/1/5/10

USB Ports

Rear: 1x USB-C 3.2 Gen2, 3x USB 3.2 Gen1, 2x USB 2.0
Internal: 2x USB 3.2 Gen1, 4x USB 2.0

Internal I/O

24-pin ATX, 8-pin 12V, 4x SATA, 2x M.2, 4x fan headers, RGB headers, TPM, front panel, USB, audio, Q-Flash Plus, Clear CMOS

Back Panel I/O

2x USB 2.0, 1x PS/2, 2x DP, 1x HDMI, 3x USB 3.2 Gen1, 1x USB-C 3.2 Gen2, 1x LAN, 3x Audio jacks, 2x antenna

I/O Controller

iTE® Controller

Monitoring

Voltage/Temp/Fan/Flow detection; Fan fail warning; Speed control

BIOS

128Mbit flash; AMI UEFI BIOS; ACPI 5.0; Q-Flash, Q-Flash Plus

Features

GCC, Smart Backup

Software

Norton® Internet Security OEM

OS Support

Windows 11/10 64-bit

Form Factor

Micro ATX, 24.4 x 24.4 cm
