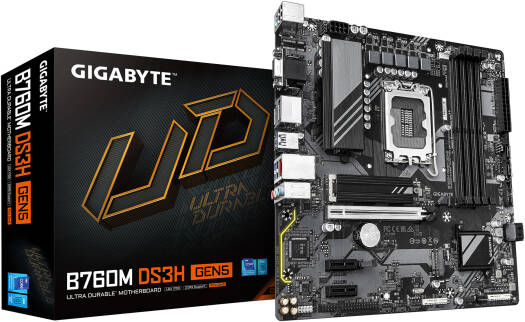

GIGABYTE B760M DS3H GEN5 LGA1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slot, 2x M.2 Slots | B760M-DS3H-GEN5

CPU

LGA1700 socket; Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® (see GIGABYTE website for latest support). L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

4× DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM), Dual channel
• 14th/13th Gen i9/i7: DDR5 7600(O.C.)–4400 MT/s
• 13th Gen i5/i3 & 12th Gen Core/Pentium/Celeron: DDR5 4800/4400 MT/s Supports ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP modules

Onboard Graphics

Intel® HD Graphics (CPU dependent)
• D-Sub: up to 1920×1200@60Hz
• HDMI: up to 4096×2160@60Hz (HDMI 2.1, HDCP 2.3)
• 2× DisplayPort: up to 4096×2304@60Hz (DP 1.2, HDCP 2.3) Supports quad-display

Audio

Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software Supports S/PDIF Out

LAN

Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)

Expansion Slots

• CPU: 1× PCIe 5.0 x16 (graphics card or NVMe SSD only)
• Chipset: 2× PCIe 3.0 x1

Storage

• CPU: 1× M.2 (2280, PCIe 4.0 x4/x2)
• Chipset: 1× M.2 (2280, PCIe 4.0 x4/x2), 4× SATA 6Gb/s Supports RAID 0/1/5/10 (SATA only)

USB

• Back panel: 1× USB-C (3.2 Gen2), 3× USB 3.2 Gen1, 2× USB 2.0
• Internal: 1× USB 3.2 Gen1 header (2 ports), 1× USB 3.2 Gen1 header (2 ports), 2× USB 2.0 headers (4 ports)

Internal I/O

24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 3× system fans, 2× ARGB Gen2 headers, 1× RGB header, 2× M.2, 4× SATA, front panel, audio header, USB headers, TPM header, serial, parallel, S/PDIF Out, Q-Flash Plus button, reset, Clear CMOS

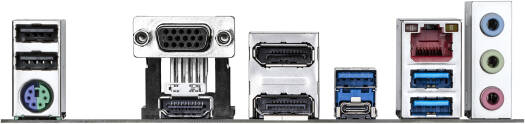

Back Panel

2× USB 2.0, 1× PS/2, 1× D-Sub*, 1× HDMI*, 2× DisplayPort*, 3× USB 3.2 Gen1, 1× USB-C (3.2 Gen2), 1× RJ-45, 3× audio jacks (*support may vary by CPU)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control (depends on fan)

BIOS

128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM)

OS Support

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX; 24.4 × 24.4 cm
