GIGABYTE B760M D3HP WIFI6 LGA1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 PCIe 4.0 x4, Wi-Fi 6 & BT 5.3 | B760M-D3HP-WIFI6 - Image 1
1 / 4

GIGABYTE B760M D3HP WIFI6 LGA1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 PCIe 4.0 x4, Wi-Fi 6 & BT 5.3 | B760M-D3HP-WIFI6

Brand: Gigabyte|Category: Motherboards|SKU: 10419|Model: GIGABYTE B760M D3HP WIFI6 LGA1700
AED 519.00

  • Supports Intel® Core™ 14th/ 13th /12th processors

  • Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution

  • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support

  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors

  • Fast Networks: GbE LAN & Wi-Fi 6 802.11ax

  • Extended Connectivity: Front USB-C® 5Gb/s, DP, HDMI, D-Sub

  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

LGA1700 socket; Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® (check GIGABYTE site for latest). L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

4× DDR5 DIMM, up to 192 GB (48 GB per DIMM), Dual channel.
• i9/i7 (13th/14th Gen): DDR5 5600/5200/4800/4400 MT/s
• i5/i3 (13th Gen) & 12th Gen Core/Pentium Gold/Celeron: DDR5 4800/4400 MT/s ECC Un-buffered (non-ECC mode), Non-ECC Un-buffered, XMP support

Onboard Graphics

Intel® HD Graphics (depends on CPU)
• D-Sub: up to 1920×1200@60Hz
• HDMI: up to 4096×2160@60Hz (HDMI 2.1, HDCP 2.3)
• DisplayPort: up to 4096×2304@60Hz (DP 1.2, HDCP 2.3)
• Triple-display support

Audio

Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software, S/PDIF Out support

LAN

Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)

Wireless

Realtek® Wi-Fi 6 RTL8851BE (2.4/5 GHz, a/b/g/n/ac/ax, 11ax 80MHz), Bluetooth 5.3

Expansion Slots

• CPU: 1× PCIe 4.0 x16 (GPU/NVMe SSD only)
• Chipset: 2× PCIe 3.0 x1

Storage

• CPU: 1× M.2 (PCIe 4.0 x4/x2, 2280)
• Chipset: 1× M.2 (PCIe 4.0 x4/x2, 2280), 4× SATA 6Gb/s
• RAID 0/1/5/10 support (SATA only)

USB

• Internal: 1× USB-C (3.2 Gen1), 2× USB 3.2 Gen1, 4× USB 2.0
• Rear: 3× USB 3.2 Gen1, 2× USB 2.0

Internal I/O

24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 3× system fans, 1× ARGB header, 1× RGB header, 2× M.2, 4× SATA, front panel, audio header, USB headers, TPM header, serial & parallel headers, S/PDIF Out header, Q-Flash Plus button, reset/CMOS jumpers

Back Panel

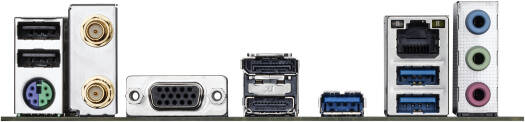

2× USB 2.0, 1× PS/2, 2× SMA antenna, 1× D-Sub*, 1× HDMI*, 1× DisplayPort*, 3× USB 3.2 Gen1, 1× RJ-45, 3× audio jacks (*support depends on CPU)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, water flow rate, fan fail warning, fan control (depends on fan)

BIOS

128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management

OS Support

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX, 24.4 × 24.4 cm
