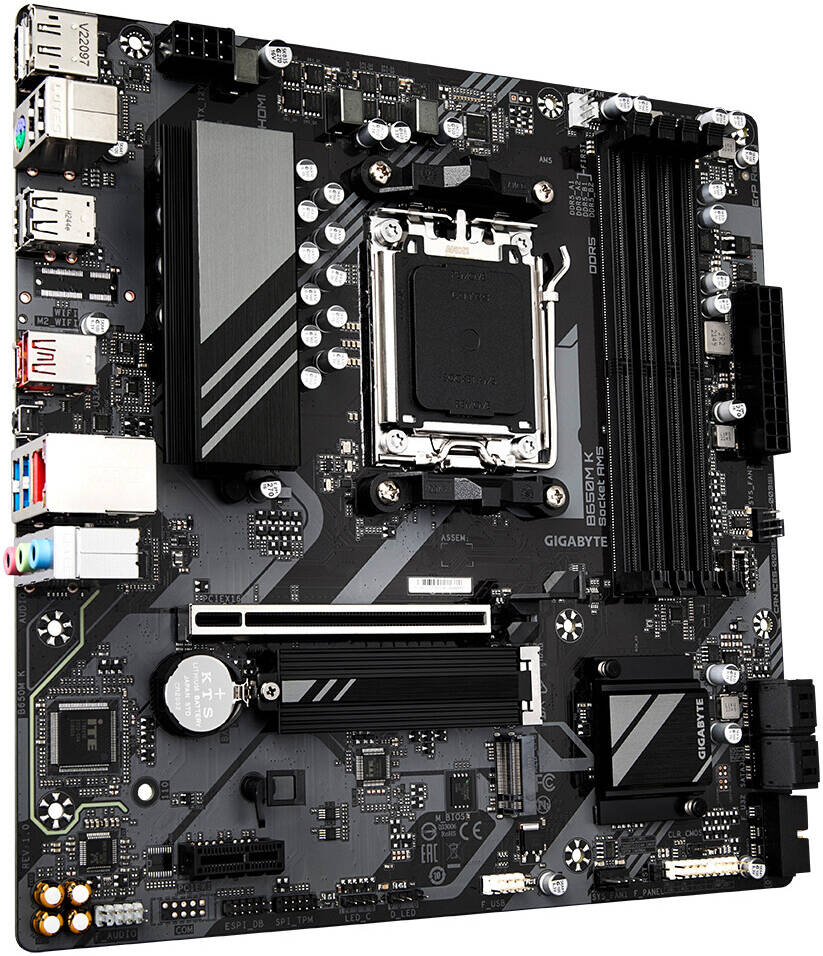

GIGABYTE B650M-K Micro ATX AM5 Motherboard, AMD B650 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot, 2x M.2 Slots | B650M-K - Image 1
1 / 4

GIGABYTE B650M-K Micro ATX AM5 Motherboard, AMD B650 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot, 2x M.2 Slots | B650M-K

Brand: Gigabyte|Category: Motherboards|SKU: 10673|Model: B650M-K
AED 519.00

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

  • Unparalleled Performance：8+2+1 Phases Digital VRM Solution

  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support

  • SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors

  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

AMD Socket AM5; Supports AMD Ryzen™ 7000/8000/9000 Series Processors (Refer to "CPU Support List" for details)

Chipset

AMD B650

Memory

DDR5 (8000 OC to 4800 MT/s); 4 DIMM slots; Max 256GB; Dual-channel; Supports AMD EXPO™ and XMP

Onboard Graphics

1x DisplayPort (3840x2160@144Hz, DP 1.4), 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3)

Audio

Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel (configurable via software)

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1x PCIe x16 (CPU-integrated): PCIe 4.0 (mode depends on CPU); 1x PCIe x1 (PCIe 3.0)

Storage Interface

2x M.2 (M2A_CPU, M2B_CPU) PCIe 4.0; 4x SATA 6Gb/s; RAID 0/1/10 for NVMe and SATA devices

USB

CPU: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 2.0/1.1 Chipset: 1x USB 3.2 Gen 1 Type-C (internal), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1

Internal I/O Connectors

ATX 24-pin, 8-pin ATX 12V, 1x CPU fan, 2x system fan, 1x D_LED, 1x RGB LED, 2x M.2 Socket 3, 4x SATA 6Gb/s, Front panel/audio headers, USB Type-C 3.2 Gen 1 header, USB 3.2 Gen 1 header, USB 2.0/1.1 header, TPM header, Clear CMOS jumper

Back Panel Connectors

1x DisplayPort, 1x HDMI, 4x USB 2.0/1.1, 1x PS/2 keyboard/mouse, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x RJ-45 LAN, 2x USB 3.2 Gen 1, 3x audio jacks

H/W Monitoring

Voltage/Temperature/Fan speed/Water cooling flow rate detection; Fan fail warning; Fan speed control

BIOS

256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System

Supports Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX (24.4cm x 24.4cm)
