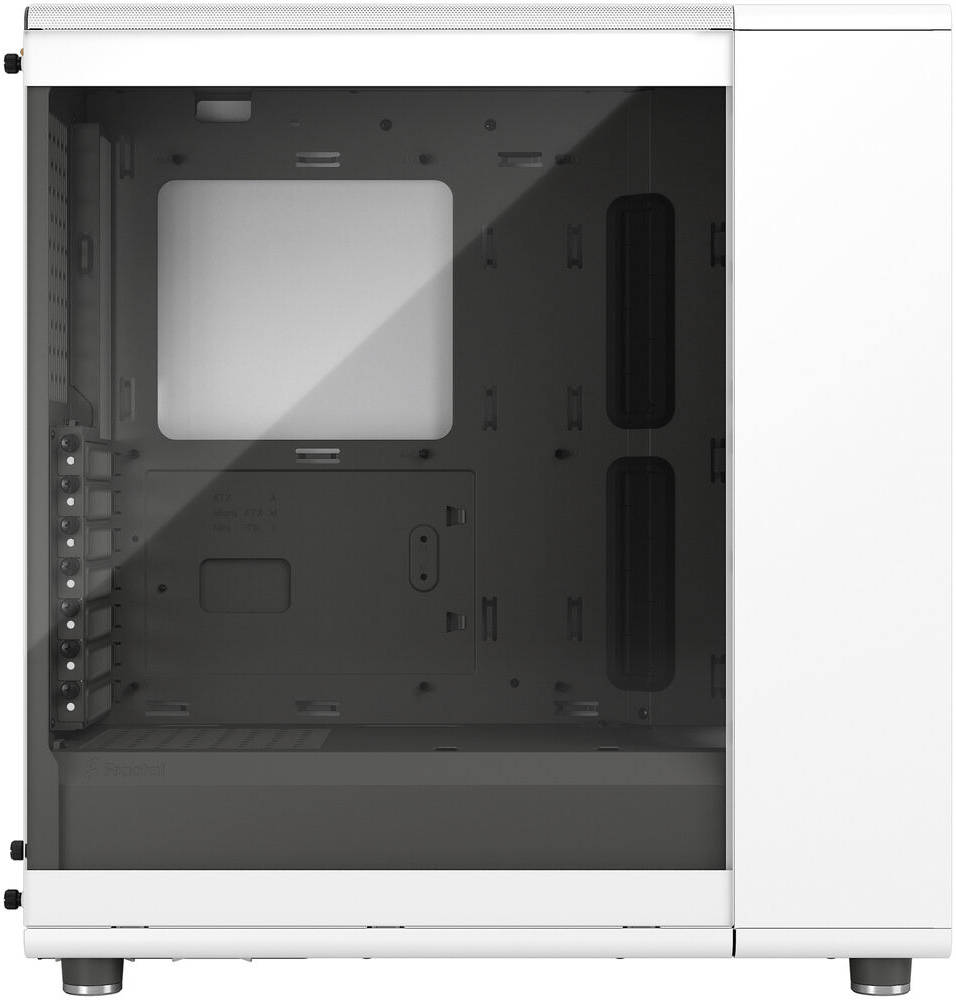

Fractal Design North Chalk White TG Clear Tint Gaming Case, Temp Glass Side Panel, Support Up to 360mm Radiator & 6x120mm Fans, 2 x 2.5/3.5" Drive Bays, USB-C 3.1 Gen 2, 2 x USB-A 3.1 | FD-C-NOR1C-04

Gaming ready

• Support radiators up to 240 mm in the top and 360 mm in the front

• Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator

• Seven bridgeless expansion slots allow for extensive customization

• Designed for ATX / mATX / ITX motherboards

Easy access

Remove the side panels, unclip the front and pop off the top panel using an integrated tab

Ventilated performance

• Natural ventilation through an open front and a stylishly integrated mesh top panel

• The mesh version of the case features a full mesh side panel in addition to the top

Flexible storage

North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box

Build versatility

• Make the most of your building experience with an intuitive interior layout

• Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans

• The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions

Dedicated 2.5" drive mounts

2

• Combined 3.5/2.5” drive mounts

  2 (included)

• 5.25” drive mounts

  0

• Expansion slots

  7

• Front interface

  1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic

• Total fan mounts

  8 x 120 mm or 6 x 140 mm

• Front fan

  3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)

• Top Fan

  2 x 120/140 mm

• Rear fan

  1 x 120 mm

• Dust filters

  Front, PSU

• Fixed cable straps

  Yes

• Cable routing grommets

  Yes

• Captive thumbscrews

  HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket

• Left side panel

  Mesh

• Right side panel

  Steel

Compatibility

• Motherboard compatibility

  ATX / mATX / Mini-ITX

• Power supply type

  ATX

• PSU max length

  1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max

• GPU max length

  355 mm with and without front fan mounted

• CPU cooler max height

  145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o

• Front radiator

  Up to 360 mm

• Top radiator

  Up to 240 mm (See manual for details on ram clearance)

• Rear radiator

  1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)

• Cable routing space

  30 mm
