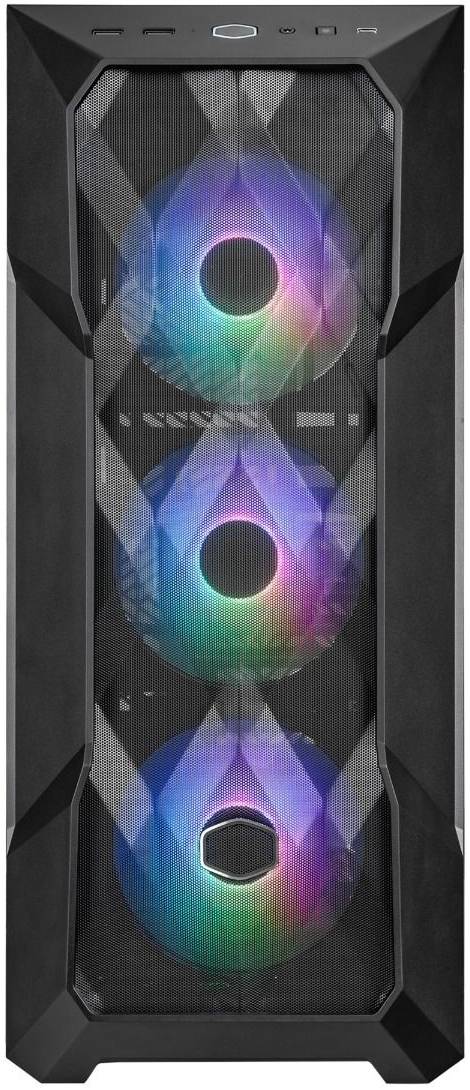

Cooler Master MASTERBOX TD500 Mesh V2 Mid Tower Gaming PC Case, FineMesh Front Panel, TG Side Panel, 3x CF120 ARGB Fans & Up to 360mm Radiator, USB 3.2 Gen 2 Type C, Black | TD500V2-KGNN-S00

Model Number

TD500V2-WGNN-S00

Exterior Color

Black, White

Materials - Exterior

Steel, Mesh, Plastic

Materials - Left Side Panel

Tempered Glass

Dimensions (L x W x H)

499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

Motherboard Support

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots

7

3.5" Drive Bays

2

2.5" Drive Bays

3

I/O Panel - USB Ports

2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C

I/O Panel - Audio In / Out

1x Audio Jack

I/O Panel - Other

1x ARGB Fan Hub

Pre-installed Fans - Front

3x 120mm CF120 ARGB

Pre-installed Fans - Rear

N/A

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm

Fan Support - Rear

1x 120mm

Radiator Support - Top

120mm, 140mm, 240mm, 280mm, 360mm (recommended maximum thickness - 55mm)

Radiator Support - Front

120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

165mm/6.49"

Clearance - PSU

200mm (Recommended up to 170mm)

Clearance - GFX

410mm / 16.14"

Cable Routing - Behind Motherboard Tray

19mm / 0.74"

Dust Filters

Front, Top, Bottom

Power Supply Support

Bottom Mount, ATX

Series

MasterBox Series

Size

Mid Tower
