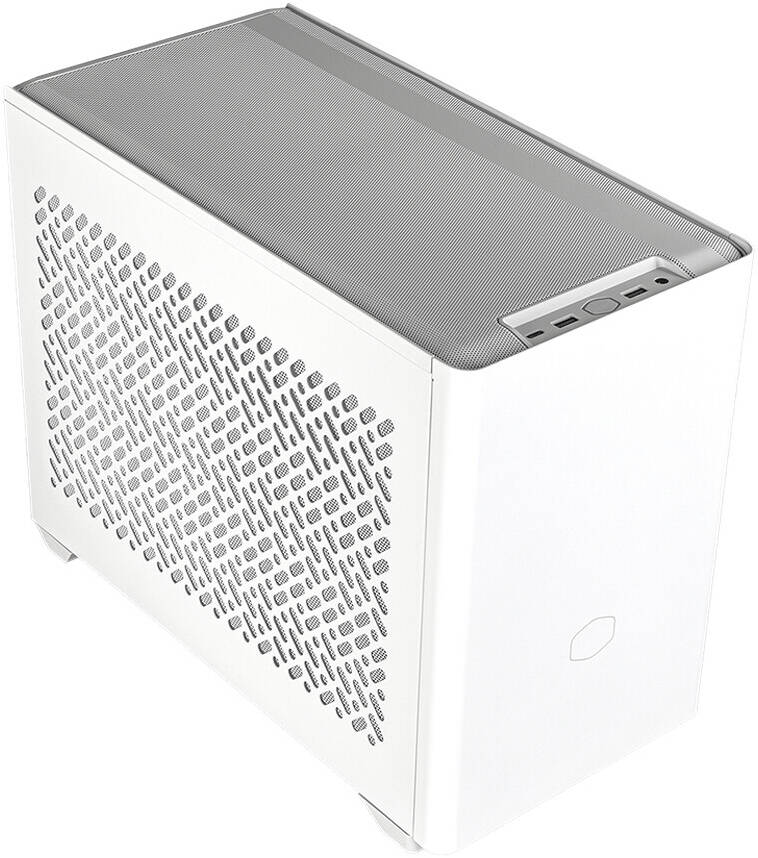

Cooler Master MasterBox NR200P V2 Mini-ITX Computer Case, 1x 120mm Pre-Installed Fan, Up to 280mm Radiator & 4x Fan Support, Dust Filters, SGCC Steel, Mesh, ABS Plastic, White | NR200PV2-WCNN-S00

Exterior Color

White

Materials - Exterior

SGCC Steel, Mesh, ABS Plastic

Materials - Left Side Panel

1x Tempered Glass, 1x Steel

Dimensions (L x W x H)

372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

Volume

18.25L

Motherboard Support

Mini-ITX (Max size: 170 x 180mm)

Expansion Slots

3

5.25" Drive Bays

0

3.5" Drive Bays

1 (Max 2 if bottom fan removed)

2.5" / 3.5" Drive Bays (Combo)

1

2.5" Drive Bays

1 (Max 2)

I/O Panel - USB Ports

2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C

I/O Panel - Audio In/Out

1x 3.5mm Headset Jack (Audio+Mic)

Included Accessories

1x PCIe 4.0 x16 riser cable, 1x GPU Holder

Pre-installed Fans

Bottom: 1x 120mm 650~1800rpm PWM SickleFlow

Fan Support - Top

2x 120/140mm

Fan Support - Side

N/A

Fan Support - Rear

N/A

Fan Support - Bottom

2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)

Radiator Support - Top

120 / 140 / 240 / 280mm

Clearance - CPU Cooler

67mm

Clearance - PSU

130mm

Clearance - GFX

- Exceed front bracket: L: 357mm, H: 160mm, W: 73mm (triple slot)

- Not exceed front bracket: L: 334mm, H: 160mm, W: 80mm (triple slot)

Dust Filters

Bottom, Left, Right, Top Panels

Power Supply Support

SFX, SFX-L

Series

MasterBox Series

Size

Mini ITX
