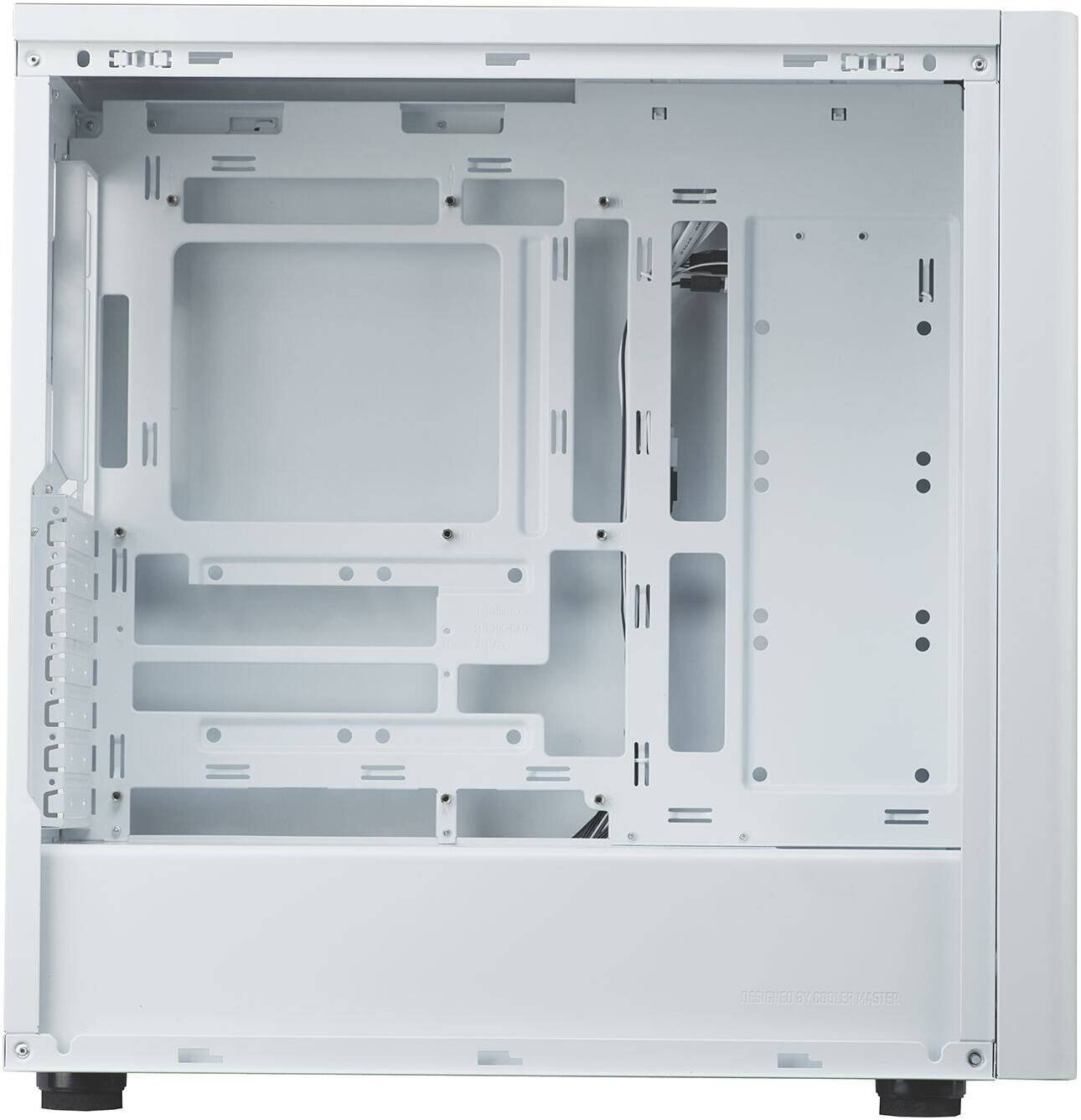

Cooler Master Elite 502 Mid Tower Computer Case, 3x 120mm ARGB Pre-Installed Fans, Up to 420mm Radiator & 7x 120mm Fan Support, Tempered Glass Side Panel, White | E502-WGNN-S00

Materials - Exterior

Steel

Materials - Right Side Panel

Steel

Materials - Left Side Panel

TG

Dimensions (L x W x H)

474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)

Volume (incl. Protrusions)

49.73 L

Motherboard Support

ITX / Micro ATX / ATX / E-ATX (*up to 12"x10.9"/30.5x27.7 cm, may impact cable management)

Expansion Slots

7

5.25" Drive Bays

N/A

3.5" Drive Bays

2

2.5" Drive Bays

2 (Max. 6)

I/O Panel - USB Ports

1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C

I/O Panel - Audio In / Out

3.5 mm Combo x 1

Fan Support - Front

(Filtered) 140 mm x 3 / 120 mm x 3

Fan Support - Top

(Filtered) 140 mm x 2 / 120 mm x 3

Fan Support - Rear

1x 120 mm

Pre-installed Fans - Front

3x 120 mm ARGB Fans

Pre-installed Fans - Top

N/A

Pre-installed Fans - Rear

N/A

Radiator Support - Front

120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)

Radiator Support - Top

120 / 140 / 240 / 280 / 360 mm

Radiator Support - Rear

120 mm

Clearance - CPU Cooler

170 mm

Clearance - PSU

170 mm, 210 mm (w/o HDD Cage)

Clearance - Graphics Card

360 / 410 mm (w/o front radiator)

Cable Routing - Behind Motherboard Tray

33–35 mm

Dust Filters

Top, Front, Bottom

Power Supply Support

ATX

Series

Elite Series

Size

Mid Tower
