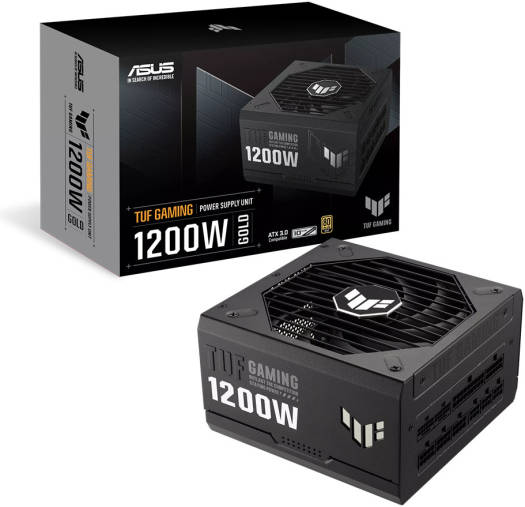

ASUS TUF Gaming 1200W Fully Modular Power Supply, 80 Plus Gold Certification, ATX12V, 135mm Axial Tech Fan Design, Protective PCB Coating, ATX 3.0 Compatible, Black | 90YE00S0-B0NA00
The ASUS TUF Gaming 1200W Gold (Model: 90YE00S0-B0NA00 / TUF-GAMING-1200G-AE) is the rugged, high-performance workhorse of the ASUS power supply lineup. While it lacks the OLED screen of the Thor or the ARGB of the Strix, it is built with military-grade durability.
Included warranty
1 Year
Additional Warranty
Product Description
Specifications
Model
TUF Gaming 1200W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A99A 0.8A 3A
Combined Load
130W 130W 1188W 9.6W 15W
Total Output
1200W
Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 2 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120 mm)
SATA 1-to-3 Cable x 1 (400+120+120 mm)
Peripheral 1-to-4 x 1 (400+150+150+150 mm)
TUF Gaming Cable tie x 3
User Manual x 1
Weight
2.66kg (single PSU)
0dB Fan Button
No
