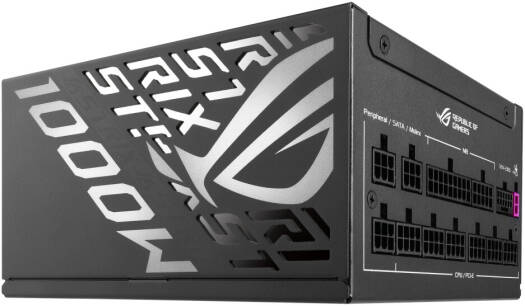

ASUS ROG Strix 1000W Fully Modular Power Supply, 80 PLUS Platinum Efficiency, Active PFC, GaN MOSFET, ATX 3.1 Compatible, Cybernetic Lambda A+, Dual Ball Fan bearings, Black | 90YE00W1-B0NA00

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

160 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

25A, 25A, 83.3A, 0.3A, 3A

Combined Load

130W, 130W, 1000W, 3.6W, 15W

Total Output

1000W

Cable Connectors

MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1, PCI-E 6+2-pin x 4, SATA x 6, PERIPHERAL x 3

Package Contents

Power Cord x 1, Motherboard Power Cable x 1 (610mm), CPU Cable x 2 (1000mm), PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm), PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm), SATA 1-to-3 Cable x 2 (400+120+120mm), Peripheral 1-to-3 Cable x 1 (400+150+150mm), ROG Strix DIY sticker x 1, User Manual x 1

Weight

2.91 kg (single PSU)

Cybenetics Noise Level Certification

A+

0dB Technology

Supported. The fan shuts off entirely under certain load

0dB Fan Button

Yes. ON: Fan spins only under certain load. OFF: Fan spins continuously at all load levels.
