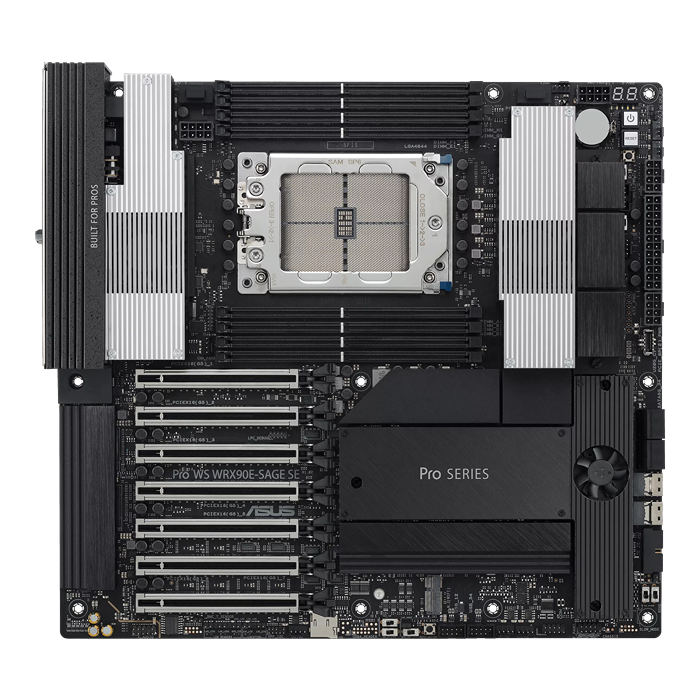

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard, AMD WRX90 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 7x PCIe 5.0 x16 Slots, 4x M.2 Slots | 90MB1FW0-M0EAY0

Key Features

• AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.

• Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.

• CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).

• Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.

• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.

• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.

• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

  CPU	AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
  Chipset	AMD WRX90 Chipset
  Memory	8 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture
  Expansion Slots	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode)
  Storage	Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports
  Ethernet	1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet ASUS LANGuard
  USB	Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 ports (2 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio	Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit

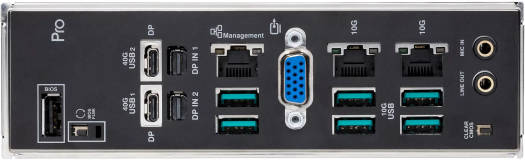

  Back Panel I/O Ports	2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button
  Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header
  Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate and onboard thermal pads - M.2 heatsink - Steel backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header (Dedicated Management for AST2600) 1 x VPP_I2C header
  Software Features	ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey IT Management software supported - ASUS Control Center Express(ACCE)
  Accessories	Cables, miscellaneous items, documentation
  Operating System	Windows® 11, Windows® 10 64-bit
  Form Factor	EEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)
