ASRock Z890 Pro-A LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 Slot, 4x M.2 Slots | 90-MXBP50-A0UAYZ

Unique Features

Superb Productivity: PCIe Gen5, Dual Channel DDR5, Thunderbolt™ 4 Type-C Port (40 Gb/s)

Rock-Solid Durability: 16+1+1+1+1 Power Phase, Memory OC Shield

Ultrafast Connectivity: 2.5G LAN

EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer

EZ Troubleshooter: ASRock Post Status Checker

CPU

Supports Intel® Core™ Ultra Processors, Hybrid Technology, Turbo Boost Max 3.0, AI Acceleration

Chipset

Intel® Z890

Memory

Dual Channel DDR5, 4 Slots, Up to 9066MHz+ (OC), Max 256GB, XMP 3.0

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel® Xe LPG, HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (8K 60Hz), Thunderbolt™ 4

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

2.5G LAN, Dragon RTL8125BG, Smart Auto Adjust Bandwidth Control

Slots

PCIe 5.0 x16, PCIe 4.0 x4 (2), PCIe 4.0 x1, M.2 Socket for WiFi

Storage

Blazing M.2 Gen5x4, Hyper M.2 Gen4x4 (3), SATA3 (4), RAID Support

USB

Thunderbolt™ 4 Type-C, USB 3.2 Gen2x2, USB 3.2 Gen1 (6), USB 2.0 (8)

Connectors

TPM Header, Fan Connectors, RGB Headers, USB 3.2 Gen2x2 Front Panel Header

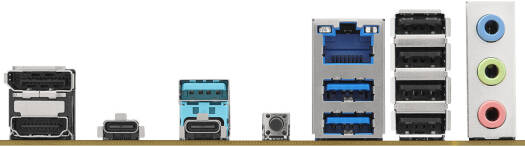

Rear I/O

HDMI, DisplayPort 1.4, Thunderbolt™ 4, USB 3.2, RJ-45 LAN, Audio Jacks, BIOS Flashback Button

Software/UEFI

ASRock A-Tuning, Polychrome SYNC, EZ Mode, Full HD UEFI

Accessories

I/O Shield, 2 SATA Cables, M.2 Screw

Form Factor

ATX, 12.0" x 9.6" (30.5 cm x 24.4 cm), 2oz Copper PCB

OS

Microsoft Windows® 11 64-bit

Certifications

FCC, CE, ErP/EuP ready
