APC SRT 5000VA RM Smart UPS, 230 V Main Input Voltage, Double-conversion on-line Power Protection, 3U Rack Unit, 480 J Surge Energy Rate, Black | SRT5KRMXLI
High-Density Power Protection: Provides true double-conversion on-line power protection with scalable runtime.
Network Management: Includes an Embedded Network Management Card for network-based UPS monitoring and management, with an additional SmartSlot for connectivity.
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
SRT5KRMXLI
5000VA RM Smart UPS

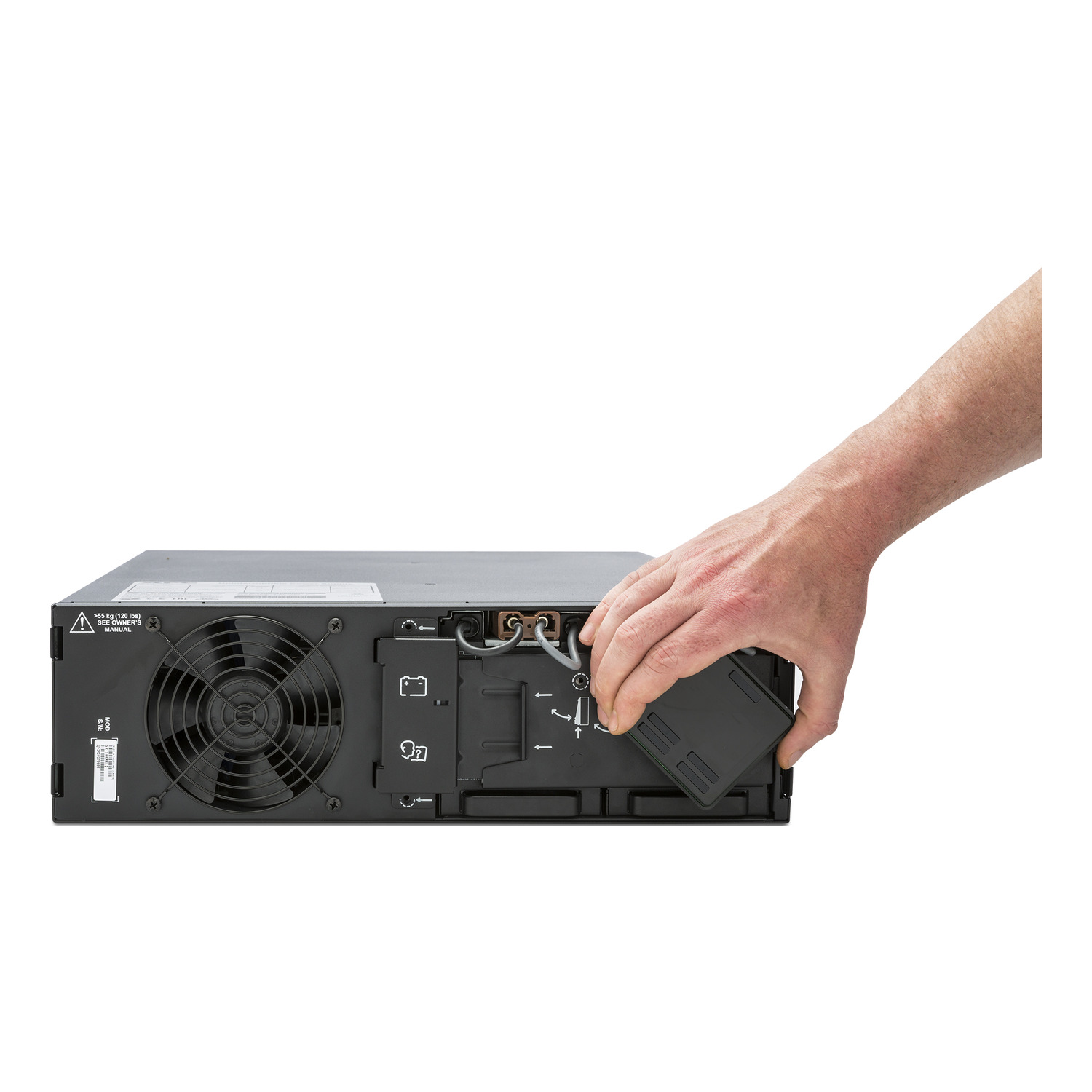

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 3U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 719mm (depth) x 130mm (height) x 432mm (width) and weighs 54.43kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specification
Overview |
|
Presentation | High density, double-conversion on-line power protection with scalable runtime |
Lead Time | Usually in Stock |
Main |
|
Run Time for Load | 4500 W: 3 min 59 sec |
Min-Max Load | 450-4500 W |
Max. Capacity Used | 100% |
Main Input Voltage | 230 V |
Other Input Voltage | 220 V, 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V, 240 V |
Rated Power | 4500 W |
Rated Power in VA | 5000 VA |
Output Connection Type | 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19 |
Number of Rack Units | 3U |
Provided Equipment | Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, Warranty card, Web/SNMP management card |
Range of Product | Smart-UPS On-Line |
Batteries & Runtime |
|
Battery Type | Lead-acid battery |
Number of Battery Filled Slots | 0 |
Battery Recharge Time | 1.5 h |
Number of Battery Replacement Quantity | 1 |
Battery Voltage | 192 V |
Battery Charger Power | 560 W rated |
Battery Life | 3-5 years |
Replacement Battery | APCRBC140 |
Extended Runtime | 1 |
General |
|
UPS Type | Double conversion online |
Product Web Sub-family | High density |
Number of Power Module Free Slots | 0 |
Number of Power Module Filled Slots | 0 |
Redundant | No |
Physical |
|
Colour | Black |
Height | 13 cm |
Width | 43.2 cm |
Depth | 71.94 cm |
Net Weight | 54.43 kg |
Mounting Location | Front |
Mounting Preference | No preference |
Mounting Mode | Rack-mounted |
Two Post Mountable | 0 |
USB Compatible | Yes |
Mounting Position | Horizontal |
Input |
|
Network Frequency | 40-70 Hz auto-sensing |
Number of Input Connectors | 1 hard wire 3-wire (1P + N + E) |
Input Voltage Limits | 100-275 V adjustable (half load) |
Output |
|
Maximum Configurable Power in VA | 5000 VA |
Maximum Configurable Power in W | 4500 W |
Output Frequency | 50/60 Hz +/- 3 Hz sync to mains |
Wave Type | Sine wave |
Harmonic Distortion | Less than 2% |
Crest Factor | 3:1 |
Bypass Type | Internal bypass (automatic and manual) |
Conformance |
|
Product Certifications | CE, EAC, IRAM, RCM, VDE |
Marking | CE Mark |
Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Environmental |
|
Ambient Air Temperature for Operation | 0-40 °C |
Relative Humidity | 0-95% non-condensing |
Operating Altitude | 0-10000 ft |
Ambient Air Temperature for Storage | -15-45 °C |
Storage Relative Humidity | 0-95% non-condensing |
Storage Altitude | 0-15240 m |
Acoustic Level | 55 dBA |
Heat Dissipation | 931 Btu/h |
IP Degree of Protection | IP20 |
Communications & Management |
|
Free Slots | 1 |
Preinstalled Device | Network management card 3 with environmental monitoring |
Alarm | Audible and visible alarms: prioritized by severity |
Emergency Power Off | Yes |
Surge Protection and Filtering |
|
Surge Energy Rate | 480 J |
Packing Units |
|
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
