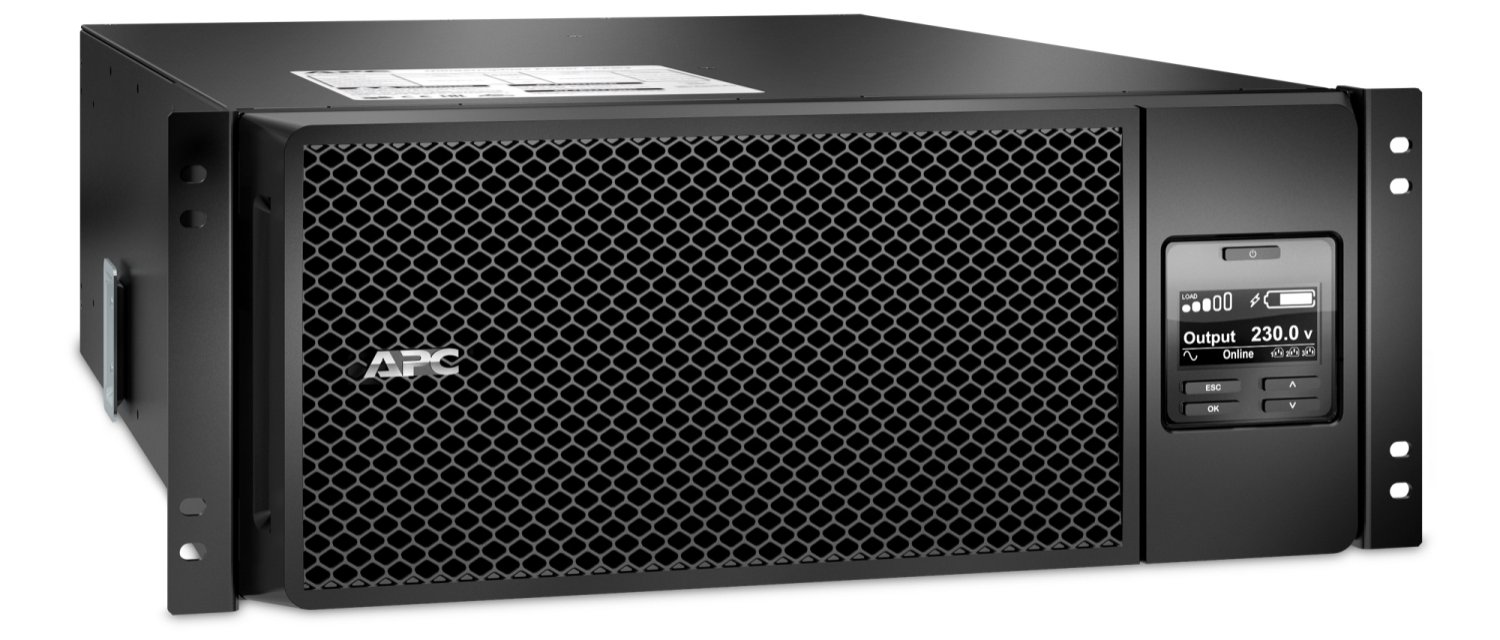

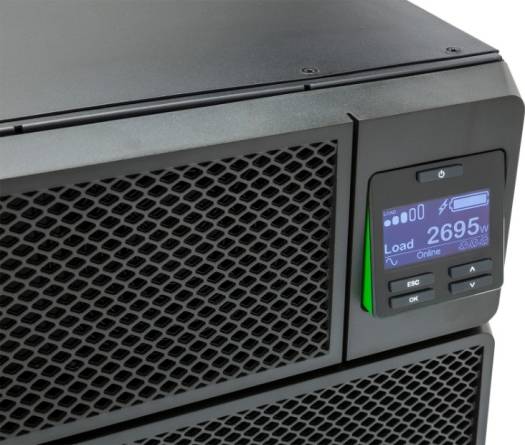

APC Smart-UPS SRT 6000 VA RM 230V, Automatic Internal Bypass, True Double-conversion Online Power Protection, LED Status Indicators

SRT6KRMXLI

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 6000VA/6000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13, 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. Its dimensions are 719mm (depth) x 174mm (height) x 432mm (width) and weighs 60.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Main
Run Time for Load	6000 W (2 min 28 s for 600–6000 W)
Max. Capacity Used	100 %
Main Input Voltage	230 V
Other Input Voltage	220 V, 240 V
Main Output Voltage	230 V
Other Output Voltage	220 V, 240 V
Rated Power	6000 W, 6000 VA
Output Connection Type	6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Output Connector Type	Hard wire 3-wire (H N + E)
Number of Rack Units	4U
Provided Equipment	CD with software, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Range of Product	Smart-UPS On-Line
Batteries & Runtime
Battery Type	Lead-acid battery
Battery Voltage	192 V
Extended Runtime	1
Battery Recharge Time	1.5 h
Number of Battery Slots	0 filled slots, 1 replacement battery
Battery Life	3–5 years
Replacement Battery	APCRBC140
Battery Charger Power	597 W rated
General
Number of Power Module Slots	0 filled, 0 free
Product Web Sub-family	High density
Redundant	No
UPS Type	Double conversion online
Physical
Colour	Black
Dimensions (H x W x D)	17.4 cm x 43.2 cm x 71.94 cm
Net Weight	60 kg
Mounting	Front, Rack-mounted, Horizontal
Mounting Preference	Lower
USB Compatible	Yes
Input
Input Voltage Limits	100–275 V adjustable (half load)
Number of Input Connectors	1 hard wire 3-wire (1P + N + E)
Network Frequency	40–70 Hz auto-sensing
Output
Bypass Type	Internal bypass (automatic and manual)
Crest Factor	3:1
Harmonic Distortion	Less than 2 %
Maximum Configurable Power	6000 W, 6000 VA
Wave Type	Sine wave
Output Frequency	50/60 Hz ± 3 Hz sync to mains
Conformance
Product Certifications	CE, EAC, IRAM, RCM, VDE
Marking	CE Mark
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental
Acoustic Level	55 dBA
Heat Dissipation	1300 Btu/h
Operating Altitude	0–10000 ft
Operating Temperature	0–40 °C
Storage Temperature	-15–45 °C
Storage Altitude	0–15240 m
IP Degree of Protection	IP20
Relative Humidity	0–95 % non-condensing
Communications & Management
Emergency Power Off	Yes
Free Slots	1
Preinstalled Device	Network management card 3 with environmental monitoring
Alarm	Audible and visible alarms (prioritized by severity)
Surge Protection and Filtering
Surge Energy Rate	480 J
