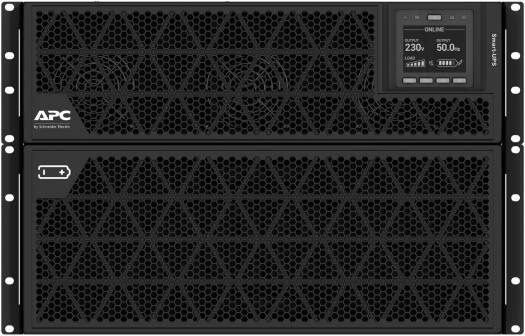

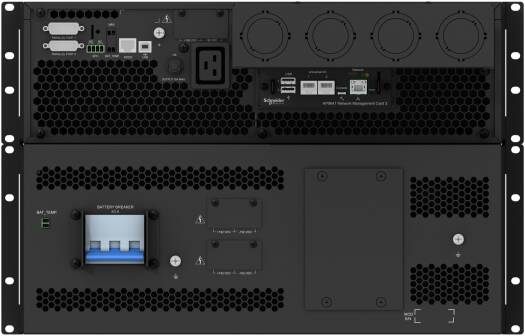

APC 20kVA/ Smart-UPS RT On-Line Rack/Tower, 20kW Power, 230V/380V...415V Input Voltage, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, RS232 / RJ45 & USB-B, Black | SRTG20KXLI - Image 1
1 / 7

APC 20kVA/ Smart-UPS RT On-Line Rack/Tower, 20kW Power, 230V/380V...415V Input Voltage, Hard Wire 5 (3P+N+E)+3 Wire(1P+N+E), Network Card, 50/60Hz ± 4 Hz Freq, RS232 / RJ45 & USB-B, Black | SRTG20KXLI

Brand: APC|Category: UPS|SKU: 11926|Model: Smart-UPS RT On-Line 20kVA
AED 39,312.00

  • Double Conversion Online UPS: Provides high-density, true double-conversion online power protection for critical applications, ensuring clean and uninterrupted power.

  • Scalable Runtime: Capable of supporting loads from 15 - 20kVA with the option to configure multiple battery packs for extended runtime needs

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Smart-UPS RT On-Line – 20kVA

Compact, efficient and flexible power protection for business applications.


Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.

Smart-UPS On-Line is capable of supporting loads from 15 - 20kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.

That’s Certainty in a Connected World.

Specification

General



Product or Component Type

Uninterruptible Power Supply (UPS)

UPS Type

Double conversion online

Colour

Black (RAL 9005)

Power



Main Input Voltage

380...415 V 3 phases, 230 V

Other Input Voltages

220...240 V

Main Output Voltage

380...415 V 3 phases, 230 V 1 phase

Other Output Voltages

230 V

Rated Power

20000 W / 20000 VA

Maximum Configurable Power

20000 W / 20000 VA

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Batteries & Runtime



Battery Type

Lead-acid battery

Number of Battery Filled Slots

0

Number of Battery Free Slots

0

Battery Recharge Time

4 hours

Number of Battery Replacement Quantity

2

Battery Voltage

+/- 192 V

Battery Charger Power

2160 W rated

Battery Life

3…5 years

Replacement Battery

APCRBC172

Extended Runtime

1

Physical



Height

30.6 cm

Width

44.0 cm

Depth

70.0 cm

Net Weight

142.5 kg

Mounting Location

Front

Mounting Preference

Lower

Mounting Mode

Rack-mounted

Mounting Position

Horizontal

USB Compatible

Yes

Two Post Mountable

No

Number of Rack Units

7U

Input



Network Frequency

40...70 Hz auto-sensing

Number of Input Connectors

1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)

Input Voltage Limits

160...285 V full load

Maximum Input Current

87 A

Switching Current Capacity

125 A

Input Harmonic Distortion

Less than 5 % for full load

Input Current

87 A

Load Power Factor

From 0.9 leading to 1 lagging

Output



Output Connector Type

Hard wire 5 wire (3P + N + E) 1, Hard wire 3-wire (1P + N + E) 1, IEC connector 3-wire (1P + N + E) 1

Maximum Configurable Power

20000 VA / 20000 W

Output Frequency

50/60 Hz +/- 4 Hz sync to mains

Wave Type

Sine wave

Output Overload Operation

60 seconds at 125% and 30 seconds at 150%

Efficiency

94 %

Harmonic Distortion

Less than 5 %

Crest Factor

3:1

Bypass Type

Internal bypass (automatic and manual)

Additional Information

Configurable for 380: 400 or 415 V 3 Phase nominal output voltage

Conformance



Product Certifications

CE, UKCA, TISI

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 60204-2

Environmental



Operating Temperature

0…40 °C

Relative Humidity

0…95 % non-condensing

Operating Altitude

0...3000 m

Storage Temperature

-15…45 °C

Storage Relative Humidity

0…95 % non-condensing

Storage Altitude

0…15000 m

Acoustic Level

58 dBA

Heat Dissipation

3821 Btu/h

IP Degree of Protection

IP20

Communications & Management



Free Slots

0

Preinstalled Device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off

Yes

Surge Protection and Filtering



Surge Energy Rate

600 J

Noise Suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units



Unit Type of Package 1

PCE

Number of Units in Package 1

1

Provided Equipment

1 x USB cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual, 1 x C13-C14 power cord
