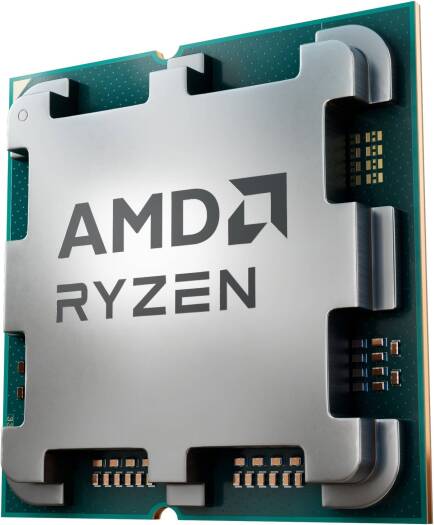

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-000000910-Tray
8 Cores & 16 Threads
4.2 GHz Base Clock
5 GHz Max Boost Clock
Socket AM5
8MB L2 & 96MB L3 Cache
Integrated AMD Radeon Graphics
DDR5-5200 Memory
AMD 3D V-Cache Technology
Zen 4 Architecture
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance
Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7800X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe® 5.0 storage support, ultra-fast WiFi® 6E wireless, 8 cores/16 processing threads, and dedicated video accelerators elevate your creator experience with an AMD Ryzen™ 7 7800X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCIe® 5.0, supported through 2025.
Specifications
Name | AMD Ryzen™ 7 7800X3D |
Family | Ryzen |
Series | Ryzen 7000 Series |
Form Factor | Desktops, Boxed Processor |
Market Segment | Enthusiast Desktop |
AMD PRO Technologies | No |
Regional Availability | Global |
Former Codename | Raphael AM5 |
Processor Architecture | Zen 4 |
# of CPU Cores | 8 |
Multithreading (SMT) | Yes |
# of Threads | 16 |
Max. Boost Clock | Up to 5 GHz |
Base Clock | 4.2 GHz |
L1 Cache | 512 KB |
L2 Cache | 8 MB |
L3 Cache | 96 MB |
Default TDP | 120W |
CPU Core Technology | TSMC 5nm FinFET |
I/O Die Technology | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71 mm² |
I/O Die (IOD) Size | 122 mm² |
Package Die Count | 2 |
AMD EXPO™ Support | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Support | Yes |
Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Compatible Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Liquid cooler recommended for optimal performance |
Max Operating Temp. (Tjmax) | 89°C |
Launch Date | April 6, 2023 |
OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
USB 3.2 Gen 2 (10Gbps) | 4 ports |
USB 3.2 Gen 1 (5Gbps) | 0 |
USB 2.0 (480Mbps) | 1 port |
Native SATA Ports | 0 |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 / 24 |
Additional PCIe® Lanes (via Chipset) | X670E: 12x Gen4 |
NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory Capacity | 128 GB |
Memory Subtype | UDIMM |
Max Memory Speed | 2x1R: DDR5-5200 |
ECC Support | Yes (requires motherboard support) |
Graphics | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C® DP Alt Mode | Yes |
Product ID (Boxed) | 100-100000910WOF |
Product ID (Tray) | 100-000000910 |
Supported Technologies | AMD EXPO™, AMD Ryzen™ Technologies |
