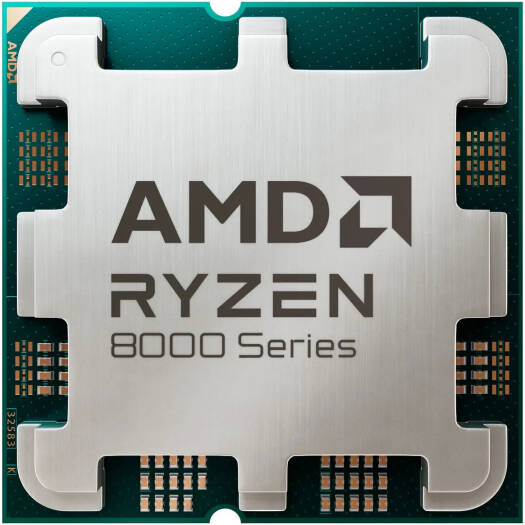

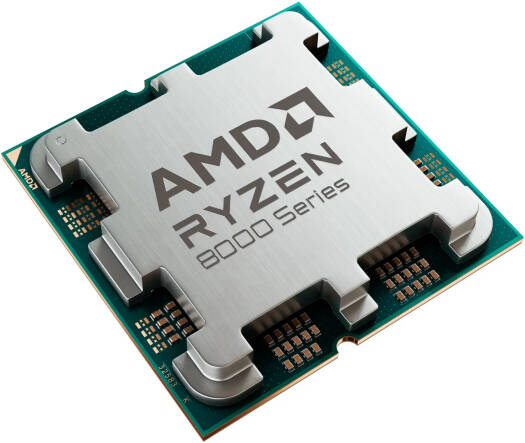

AMD Ryzen 5 8500G AM5 CPU Processor, 6 Cores & 12 Threads, Up to 5 GHz Max Boost Clock, 6MB L2 & 16MB L3 Cache, DDR5 Memory, AMD Radeon 740M Graphics, Wraith Stealth Cooler | 100-100000931BOX

Name

AMD Ryzen™ 5 8500G

Family

Ryzen

Series

Ryzen 8000 Series

Form Factor

Desktops

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

Phoenix

Architecture

2x Zen 4, 4x Zen 4c

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 5 GHz

Max Zen C Clock

Up to 3.7 GHz

Base Clock

3.5 GHz

Zen4 Base Clock

4.1 GHz

Zen C Base Clock

3.2 GHz

L2 Cache

6 MB

L3 Cache

16 MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

TSMC 4nm FinFET

CPU Compute Die (CCD) Size

137mm²

Package Die Count

1

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax)

95°C

Launch Date

1/31/2024

OS Support

Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps) Ports

2

Native USB 3.2 Gen 2 (10Gbps) Ports

2

Native USB 2.0 (480Mbps) Ports

1

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

14, 10

NVMe Support

Boot, RAID0, RAID1

System Memory Type

DDR5

Memory Channels

2

Max. Memory

256 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600

Graphics Capabilities

Graphics Model

AMD Radeon™ 740M

Graphics Core Count

4

Graphics Frequency

2800 MHz

DirectX® Version

12

DisplayPort™ Version

2.1

DisplayPort Extensions

Adaptive-Sync, HDR Metadata, UHBR10

DisplayPort Max Refresh Rates (SDR)

7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)

7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz

HDMI® Version

2.1

HDCP Version Supported

2.3

USB Type-C® DisplayPort™ Alternate Mode

Yes

Multi-Monitor Support

Yes

Max Displays

4

AMD FreeSync™

Yes

Wireless Display

Miracast

Max Video Encode Bandwidth (SDR)

1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory

Available
