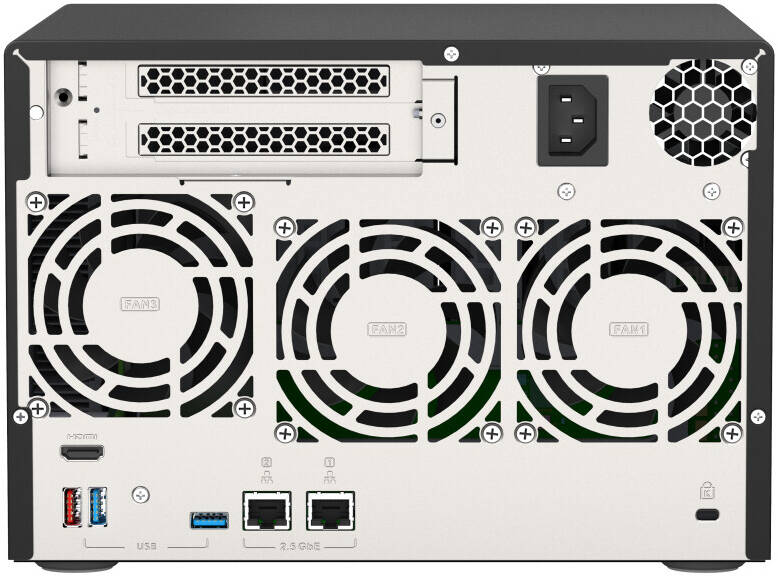

QNAP TVS-675 6-Bay NAS, ZhaoXin KX-U6580 8-core 2.5GHz Processor, 8 GB SODIMM DDR4 RAM, ZhaoXin C-960 Graphics, Hot-swappable, Hardware Transcoding | TVS-675-8G
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools.
Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards.
4K media playback and real-time transcoding; directly output videos to an HDMI™ 2.0 display (up to 4K @60Hz).
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
CPU | ZhaoXin KX-U6580 8-core 2.5GHz processor |
CPU Architecture | 64-bit x86 |
Graphic Processors | ZhaoXin C-960 Graphics |
Floating Point Unit | Yes |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | Yes |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory | 64GB (2 x 32 GB) |
Memory Slot | 2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: |
Hot-swappable | Yes (Not supported M.2 SSD) |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to for compatibility. |
SSD Cache Acceleration Support | Yes |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
10 Gigabit Ethernet Port | Optional via an adapter |
Wake on LAN (WOL) | Only the 2.5GbE port |
Jumbo Frame | Yes |
PCIe Slot | 2 Card dimensions for PCIe slot 1~Slot 2：190 x 111.15 x 18.76 mm / 7.48 x 4.38 x 0.74 inches. |
USB 3.2 Gen 1 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
HDMI™ Output | 1, HDMI™ 2.0 (up to 3840 x 2160 @ 60Hz) |
Form Factor | Tower |
LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 180.2 × 264.3 × 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
Weight (Net) | 7 kg |
Weight (Gross) | 7.8 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
Power Consumption: Disk Standby Mode | 41.897 W |
Power Consumption: Operating Mode, Typical | 60.794 W |
Fan | 3 x 80mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | Yes |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
