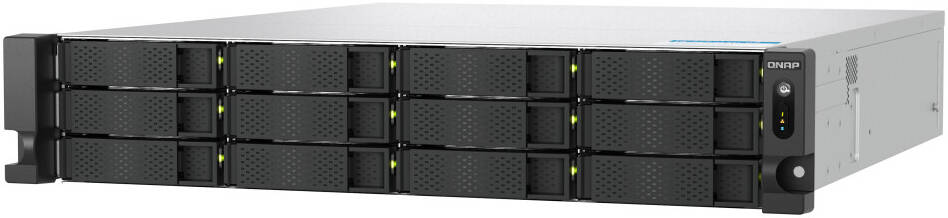

QNAP TS-H1277AXU-RP-R5-16G 12-Bay NAS, AMD Ryzen 5 7000 Series 6-Core/12-Thread Processor, (1x16GB) 16GB UDIMM DDR5, AMD Radeon Graphics, 2x M.2 2280 PCIe Gen 5 x2 Slots | TS-H1277AXU-RP-R5-16G

CPU

AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz

AMD Radeon Graphics

CPU Architecture

64-bit x86

Graphic Processors

AMD Radeon™ Graphics

Floating Point Unit

Yes

Encryption Engine

Yes (AES-NI)

Hardware-accelerated Transcoding

Yes

System Memory

16 GB UDIMM DDR5 (1x 16 GB)

Maximum Memory

192 GB (4 x 48 GB)

Memory Slot

4 x UDIMM DDR5
Support optional ECC memory

For dual-DIMM configurations, you must use a pair of identical DDR5 modules.

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

12 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

Yes (Not supported M.2 SSD)

M.2 Slot

2 x M.2 2280 PCIe Gen 5 x2 slots

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.

SSD Cache Acceleration Support

Yes

GPU pass-through

Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port

2 x 10GBASE-T (10G/5G/2.5G/1G/100M)

25 Gigabit Ethernet Port

Optional via an adapter

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

PCIe Slot

3
Slot 1: Gen 4 x 4
Slot 2: Gen 4 x 8 or Gen 4 x 4*
Slot 3: Gen 4 x 4

*Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
Card dimensions for PCIe slot 1：250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches
Card dimensions for PCIe slot 2：250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches
Card dimensions for PCIe slot 3：250 x 68.9 x 23.76 mm / 9.84 x 2.71 x 0.94 inches
Wider cards can be installed if the next PCIe slot will not be used.

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-A USB 3.2 Gen 2 10Gbps

Form Factor

2U Rackmount

LED Indicators

Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status

Buttons

Power, Reset

Dimensions (HxWxD)

88.6 × 482 × 550 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net)

13 kg

Weight (Gross)

19 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

550W(x2), 100-240V

Power Consumption: Disk Standby Mode

82.247 W

Power Consumption: Operating Mode, Typical

367.65 W

Tested with drives fully populated.

Fan

System fan: 3 x 60mm, 12VDC

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

5000
