NZXT H9 Flow RGB+, Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB and Control Hub, Panoramic Glass, Supports Dual 360mm Radiators, Up to 10 Fans, E-ATX Compatibility, Black | CM-H92FB-P1

Dimensions

Height (with feet): 506 mm (19.9 in)

Width: 315 mm (12.4 in)

Depth: 481 mm (18.9 in)

Volume: 76.7 L

Weight: 13.4 kg (29.54 lb)

General

Enclosure Type: Mid-tower

Motherboard Compatibility: E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboards Supported (BTF, Project Zero): Yes (Micro-ATX)

Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height: 165 mm

GPU Length: Up to 459 mm (<56 mm fan thickness) / Up to 410 mm (with 56 mm thick 420 mm AIO)

PSU Length: 200 mm

Top Radiator + Fan Thickness: Up to 80 mm (360 mm) / Up to 62 mm (420 mm)

Front I/O Ports

USB 3.2 Type-A: 2

USB 3.2 Gen2x2 Type-C: 1

Headset Jack: 1

Expansion Slots

Standard: 7

Vertical: 0

Drive Bays

2.5": 4 + 2

3.5": 2

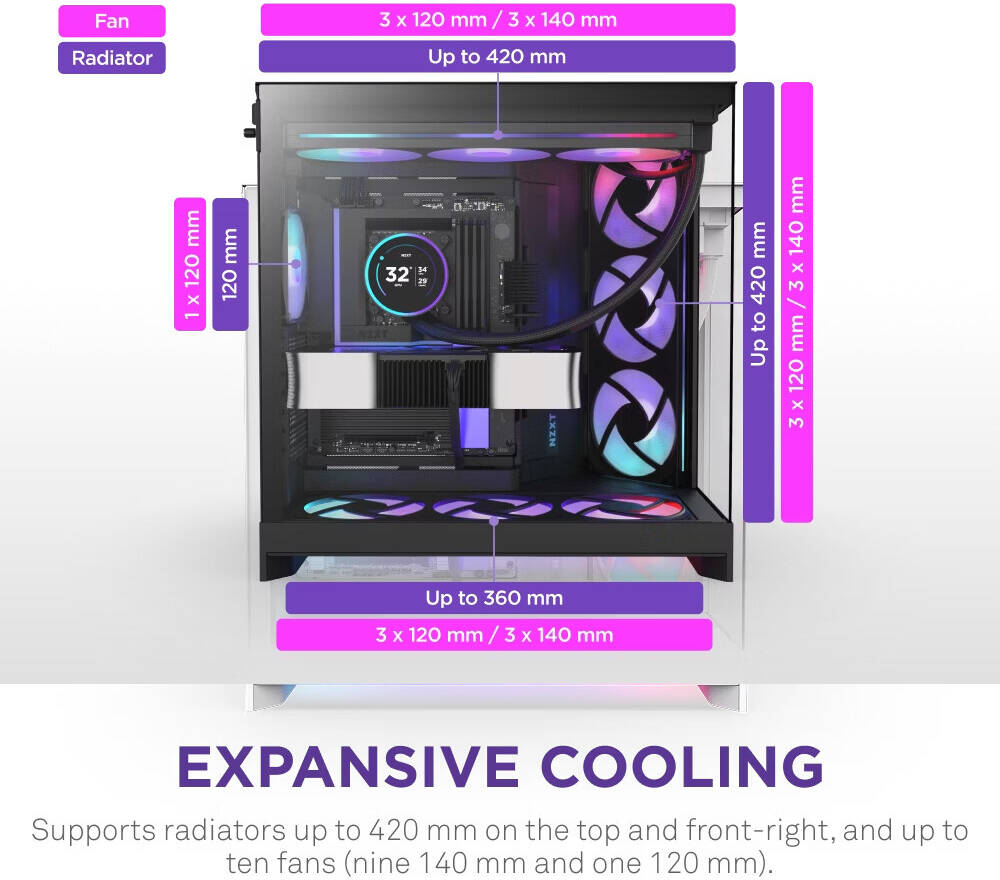

Fan Support

Front: 3 x 120/140 mm (1 x F420 RGB Core included)

Top: 3 x 120/140 mm

Bottom: 3 x 120/140 mm

Rear: 1 x 120 mm (1 x F120Q (CV) included)

Radiator Support

Front-Right: Up to 420 mm

Top: Up to 420 mm

Bottom: Up to 360 mm

Rear: Up to 120 mm

Fan Specs (F420 RGB Core)

Speed: 2,000 ± 200 RPM

Airflow: 98.61 CFM

Static Pressure: 3.2 mmH2O

Noise: 34.5 dBA

Connector: 8-pin w/ splitter

Fan Specs (F120 RGB Core CV)

Speed: 1,300 ± 130 RPM

Airflow: 55.17 CFM

Static Pressure: 1.27 mm-H₂O

Noise: 26.1 dBA

Connector: 3-pin

Control Hub Specs

Fan Channels: 3 x NZXT 8-pin (PWM only), 1 x NZXT 8-pin (DC+PWM), 1 x 4-pin PWM (DC+PWM)

RGB Channels: 4 x NZXT 8-pin, 1 x NZXT RGB

Max LED Support: 96 LEDs per NZXT 8-pin channel; 40 LEDs for NZXT RGB channel, up to 5 devices

System Requirements: USB 2.0 Internal Header, 8-pin PCIe Power
