MSI MPG Z890 Carbon Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-e x16 Slots, 5x M.2 Slots | 911-7E17-001 - Image 1
1 / 4

MSI MPG Z890 Carbon Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-e x16 Slots, 5x M.2 Slots | 911-7E17-001

Brand: MSI|Category: Motherboards|SKU: 10503|Model: 911-7E17-001
AED 2,099.00

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket

  • Supports DDR5 Memory, up to 9200+ MT/s (OC)

  • Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Chipset

INTEL Z890

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory

4x DDR5 UDIMM, Max 256GB, 9200 - 4800 MT/s (OC), Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC, CUDIMM

Onboard Graphics

1x HDMI™ 2.1 (8K 60Hz), 2x Type-C DisplayPort (Thunderbolt™ 4, 4K@120Hz / 8K@60Hz)

Expansion Slots

3x PCI-E x16 (PCIe 5.0/4.0), Supports BIOS adjustments for x8+x4+x4 and x4+x4

Audio

Realtek® ALC1220P Codec, 7.1-Channel USB HD Audio, Supports S/PDIF

Storage

5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G, RAID 0/1/5/10 for SATA & NVMe

RAID

Supports RAID 0, 1, 5, 10 for both SATA and M.2 NVMe storage

Thunderbolt™

2x Thunderbolt 4 (40Gbps), USB4, USB 3.2, 8K display support, 15W charging, Daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices

USB

Rear: 10x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C

LAN

Intel® Killer™ E5000B 5G LAN, Intel® I226V 2.5G LAN

Internal IO

ATX_PWR, CPU_PWR, PCI_PWR, CPU & system fans, RGB LED connectors, TPM 2.0 header, USB 2.0, USB 5Gbps Type-A, USB 20Gbps Type-C, Water Flow, Thermal Sensor

Wireless LAN & Bluetooth

Intel® Killer™ BE1750x Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO

LED Features

4x EZ Debug LED, 1x EZ Digit Debug LED

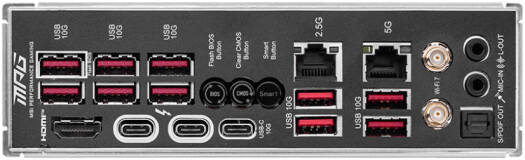

Back Panel Ports

HDMI™, Thunderbolt 4, USB 10Gbps Type-C/A, 5G LAN, 2.5G LAN, Wi-Fi/Bluetooth, Flash BIOS, Clear CMOS, Smart Button, Optical S/PDIF Out

Operating System

Windows® 11 64-bit

PCB Info

ATX, 243.84mm x 304.8mm
