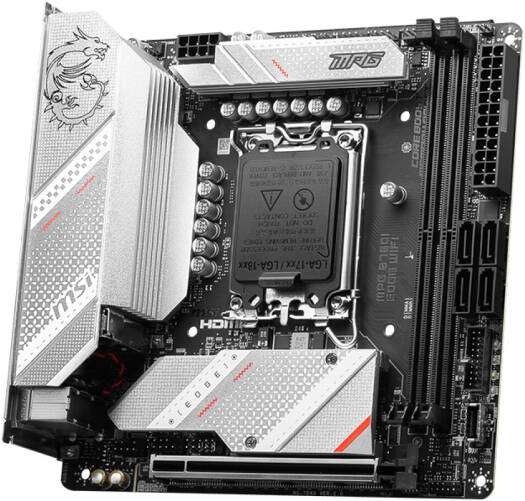

MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard, Intel B760 Chipset, 2x DDR5 Slots, Up to 128GB Max Memory, 1x 1x PCI-E x16 Slot, 2x M.2 Slots, Wi-Fi 6E & BT 5.3 | 911-7D40-014 - Image 1
1 / 5

MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard, Intel B760 Chipset, 2x DDR5 Slots, Up to 128GB Max Memory, 1x 1x PCI-E x16 Slot, 2x M.2 Slots, Wi-Fi 6E & BT 5.3 | 911-7D40-014

Brand: MSI|Category: Motherboards|SKU: 10428|Model: 911-7D40-014
AED 940.00

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

  • Supports DDR5 Memory, up to 7200+(OC) MHz

  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

  • Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Chipset

Intel B760

CPU Support

Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®, LGA 1700

Memory

2x DDR5, up to 128GB, 7200+ MHz (OC), Dual-Channel, non-ECC, XMP support

Memory OC Frequencies

Max 7200+ (1DPC 1R), Max 6600+ (1DPC 2R)

Onboard Graphics

1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz), CPU-dependent

PCIe Slot

1x PCI-E x16 (PCIe 5.0 from CPU)

Audio

Realtek® ALC897, 7.1-Channel HD Audio

Storage

2x M.2 (PCIe 4.0 x4/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

2x USB 2.0 (Rear), 2x USB 2.0 (Front), 4x USB 5Gbps (Rear), 2x USB 5Gbps (Front)

1x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front)

LAN

Realtek® RTL8125BG 2.5Gbps

Internal I/O

ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, System Fan, Front Panel, JCI, JAUD, JARGB_V2, JRGB, TPM

2x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C

Wireless/Bluetooth

Intel® Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3

LED Features

4x EZ Debug LED

Back Panel Ports

USB 2.0, USB 5Gbps, USB 10Gbps (Type-A & C), HDMI™, DisplayPort, 2.5G LAN, Audio, Wi-Fi/Bluetooth

OS Support

Windows® 11/10 64-bit

Form Factor

Mini-ITX (170mm x 170mm)
