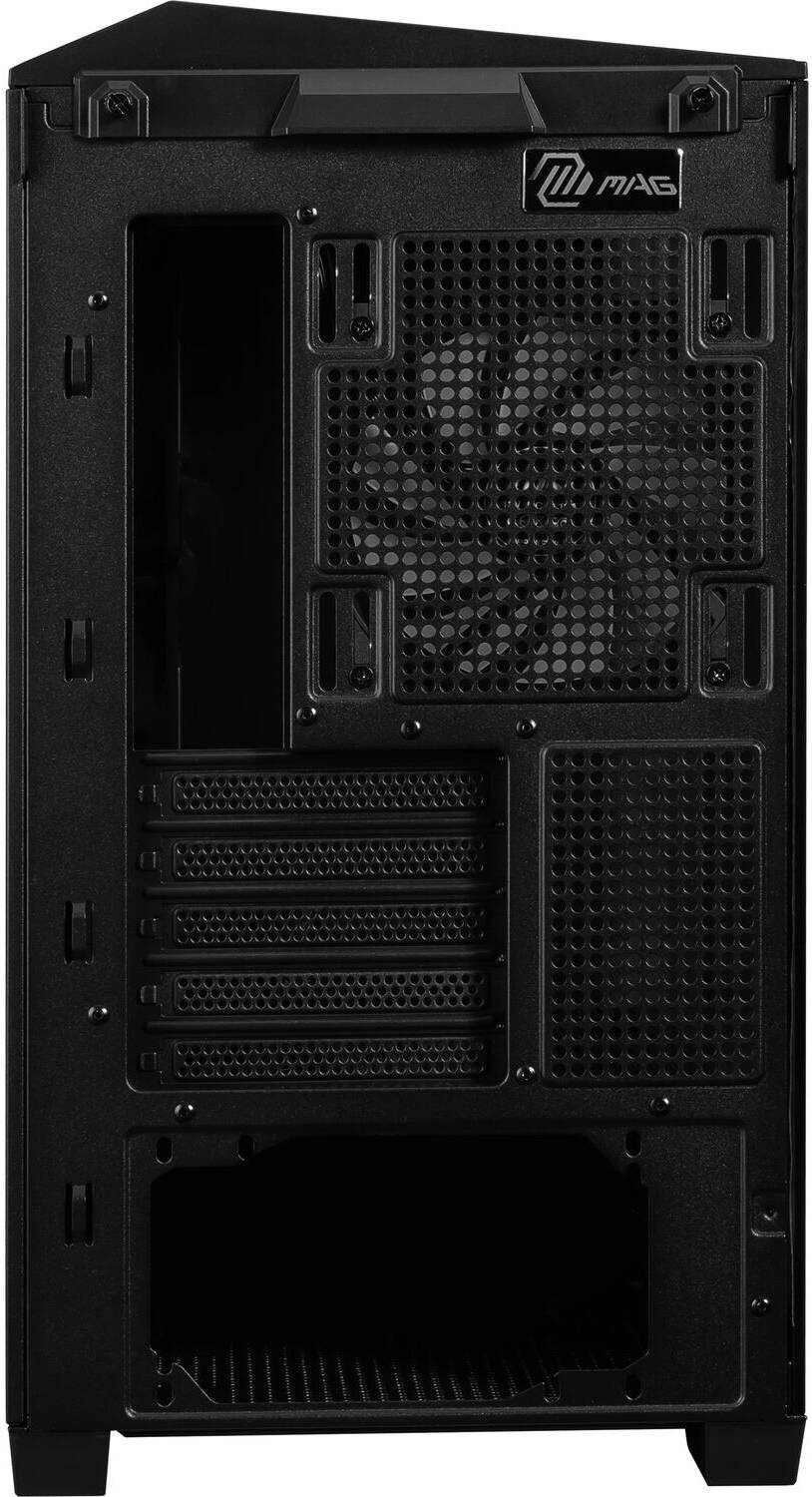

MSI MAG PANO M100R PZ Micro ATX Gaming Case, 270° Pano Temp Glass Panel, 4* aRGB Fans & Up to 360mm AIO, 1x 2.5"/3.5 Drive Bay, Support Back-Connect Motherboard, USB-/ USB-A, Black | 306-7G24R21-809

CASE FORM FACTOR

Micro-ATX Tower

MOTHERBOARD FORM FACTOR SUPPORT

M-ATX (Back-connect supported) / ITX

I/O PORTS

1 x USB 3.2 Gen 1 Type-A

1 x USB 3.2 Gen 2x2 Type-C

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

DRIVE MOUNT SUPPORT

1 x 2.5”

1 x 2.5”/3.5” combo

(up to 2 x 2.5” or 1 x 2.5” + 1 x 3.5”)

EXPANSION SLOTS

5

MAXIMUM GPU LENGTH

390 mm / 15.35 inches

*Support horizontal installation only.

MAXIMUM CPU COOLER HEIGHT

175 mm / 6.9 inches

POWER SUPPLY SUPPORT

ATX

MAXIMUM PSU LENGTH

200 mm / 7.87 inches

FAN SIZE SUPPORT

Top: 3 x 120 mm / 2 x 140 mm

Rear: 1 x 120 mm / 1 x 140 mm

Side: 3 x 120 mm

Bottom: 1 x 120 mm

PSU Shroud: 2 x 120 mm

PRE-INSTALLED FAN SIZE

Side: 3 x 120 mm

Rear: 1 x 120 mm

PRE-INSTALLED FAN TYPE

Side: 3 x ARGB Fan (Reverse-blade)

Rear: 1 x ARGB Fan

RADIATOR SIZE SUPPORT

Top: 120 / 240 / 360 mm

Rear: 120 / 140 mm

DIMENSIONS (DXWXH)

440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches

NET WEIGHT

8.66 kg

GROSS WEIGHT

11.29 kg

CONNECTION

1x USB 3.2 Gen 2x2 Type-C

1x USB 3.2 Gen 1 Type-A

Mic In/ Audio Out

LED Switch Button

Power Button
