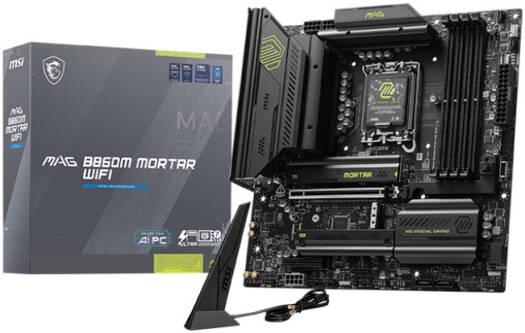

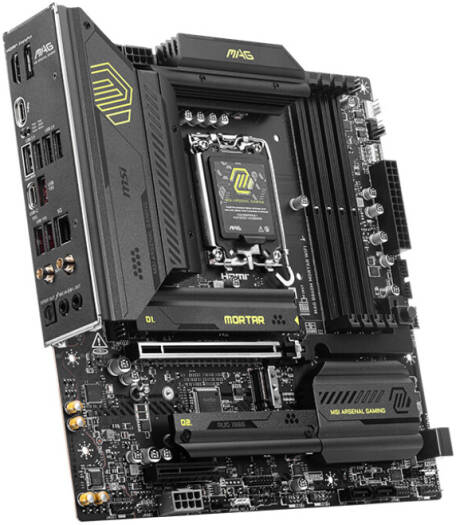

MSI MAG B860M Mortar WiFi LGA 1851 Micro ATX Motherboard, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 1x PCI-E x16 Slot, 3x M.2 Slots, WiFi & BT Connectivity, Black | 911-7E40-002 - Image 1
1 / 4

MSI MAG B860M Mortar WiFi LGA 1851 Micro ATX Motherboard, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 1x PCI-E x16 Slot, 3x M.2 Slots, WiFi & BT Connectivity, Black | 911-7E40-002

Brand: MSI|Category: Motherboards|SKU: 10455|Model: 911-7E40-002
AED 1,030.00

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket

  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

  • Ultra Performance: 12+1+1+1 Duet Rail Power System 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material

  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Chipset

INTEL B860

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory

4x DDR5 UDIMM, Max 256GB, Supports 9066 - 4800 MT/s (OC & JEDEC), Intel® XMP 3.0, Dual-Channel, Non-ECC, Un-buffered, CUDIMM

Onboard Graphics

HDMI 2.1 (8K 60Hz), DisplayPort 1.4 (4K 60Hz), Thunderbolt™ 4 (DP 2.1, 4K@120Hz / 8K@60Hz)

Expansion Slots

1x PCI-E x16 (PCIe 5.0 from CPU), 1x PCI-E x4 (PCIe 4.0 from Chipset)

Audio

Realtek® ALC897 Codec, 7.1-Channel HD Audio, S/PDIF output

Storage

3x M.2 (PCIe 5.0 & 4.0), 4x SATA 6G, RAID 0/1/5/10

Thunderbolt

1x Thunderbolt 4 (40Gbps), USB4 (20Gbps), USB 3.2 (10Gbps), 5V/3A (15W), Supports up to 8K display

USB Ports

4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type-A (Front), 3x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front)

LAN

Intel® Killer™ E5000 5Gbps LAN

Internal I/O

Thunderbolt 5 card connector, ATX/CPU/PCIe power connectors, CPU & system fan headers, RGB & LED connectors, TPM 2.0 header, USB ports

Wireless

Intel® Killer™ BE1750x Wi-Fi 7, MU-MIMO, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps, Bluetooth® 5.4

LED Features

4x EZ Debug LED, 1x EZ Memory Detection LED

Back Panel Ports

DisplayPort, HDMI, USB 2.0, USB 10Gbps (Type-A & Type-C), 5G LAN, Wi-Fi/Bluetooth, Thunderbolt™ 4, Flash BIOS Button, Clear CMOS Button, S/PDIF-OUT, Audio connectors

OS Support

Windows® 11 64-bit

Form Factor

mATX (243.84mm x 243.84mm)
