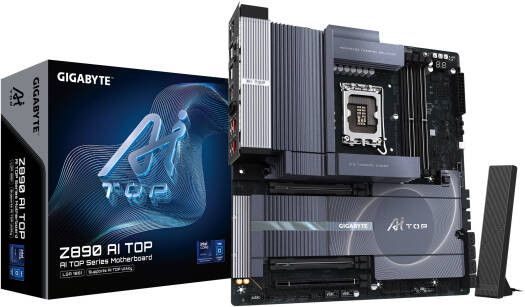

GIGABYTE Z890 AI TOP LGA 1851 E-ATX Motherboard, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slots, 4x M.2 Slots, WiFi & Bluetooth Connectivity | Z890-AI-TOP - Image 1
1 / 4

GIGABYTE Z890 AI TOP LGA 1851 E-ATX Motherboard, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slots, 4x M.2 Slots, WiFi & Bluetooth Connectivity | Z890-AI-TOP

Brand: Gigabyte|Category: Motherboards|SKU: 10467|Model: Z890-AI-TOP
AED 2,450.00

  • Supports Intel® Core™ Ultra processors (Series 2)

  • Ultimate Scalability​ : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots

  • Next-gen Connectivity : Dual Thunderbolt™ 5 Type-C with DP-Alt, HDMI

  • Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna

  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

LGA1851 socket: Intel® Core™ Ultra Processors, L3 cache varies

Chipset

Intel® Z890 Express Chipset

Memory

DDR5 up to 9500(O.C), 4x DIMM slots, max 256GB, Dual-channel, ECC/non-ECC support, XMP support

Graphics

Integrated Intel® HD Graphics, 2x Thunderbolt™ 5 (USB4® Type-C) (7680x4320@60Hz), 1x Thunderbolt™ 4 (USB4® Type-C) (5120x2880@60Hz), 1x HDMI (4096x2160@60Hz), Supports triple display

Audio

ESS ES9260 (rear), Realtek® ALC897 (front), 2-channel HD Audio

LAN

2x Marvell® AQtion AQC113C 10GbE

Wireless

Intel® Wi-Fi 7 BE200, Bluetooth 5.4

Expansion Slots

1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shared with x16 slot), 1x PCIe 4.0 x4

Storage

4x M.2 (PCIe 5.0/4.0), 8x SATA 6Gb/s, RAID 0/1/5/10 support

USB Ports

2x Thunderbolt™ 5 (USB4® Type-C), 1x Thunderbolt™ 4 (USB4® Type-C), 1x USB4® Type-C, 2x USB 3.2 Gen 2x2 (Type-C), 8x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 4x USB 2.0

Internal I/O

2x 8-pin ATX 12V, 4x M.2, 8x SATA, RGB headers, USB headers, TPM header, Q-Flash Plus button

Back Panel

1x HDMI, 2x Thunderbolt™ 5 (USB Type-C), 6x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 2x LAN, 2x audio jacks, 2x antenna connectors

BIOS

256 Mbit flash, AMI UEFI, Q-Flash, Smart Backup

OS Support

Windows 11 64-bit

Form Factor

E-ATX (30.5cm x 28.5cm)
