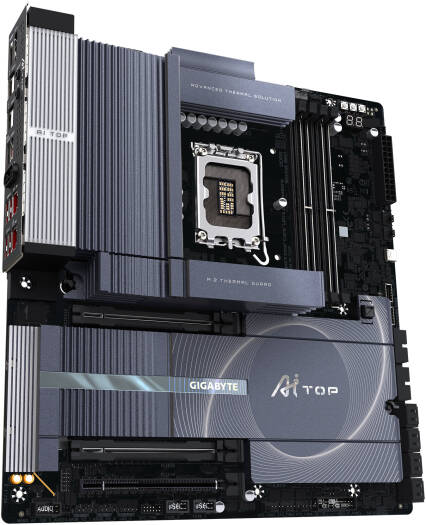

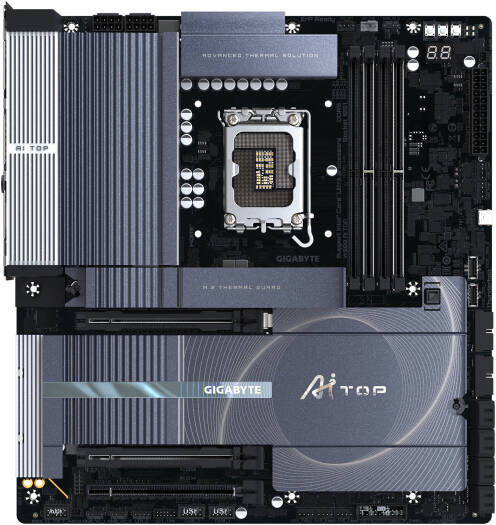

GIGABYTE W880 AI TOP E-ATX LGA 1851 Motherboard, Intel W880 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 2 x PCIe 5.0 x16 (run x8, x16) with PCIe UD Slot X, 4x M.2, WIFI & BT | W880-AI-TOP

CPU

LGA1851 socket, supports Intel® Core™ Ultra processors

L3 Cache

Varies by CPU

Chipset

Intel® W880 Express

Memory Support

DDR5 5600–9466+ (O.C.) MT/s

4× DDR5 DIMM slots, up to 256GB

ECC & Non-ECC Unbuffered DIMM support

Dual-channel architecture

XMP support

Onboard Graphics

Integrated GPU + Thunderbolt 5 controller

2× Thunderbolt 5 Type-C (up to 7680×4320@60Hz)

1× Thunderbolt 4 Type-C (up to 5120×2880@60Hz)

1× HDMI (4096×2160@60Hz, HDMI 2.1)

Triple-display support

Audio (Rear)

ESS ES9260 Codec, HD Audio, 2-channel

Audio (Front)

Realtek ALC897

LAN

2× Marvell AQC113C 10GbE

Wireless

Intel Wi-Fi 7 BE200, BT 5.4

Expansion Slots (CPU)

1× PCIe 5.0 x16 (PCIEX16)

1× PCIe 5.0 x8 (PCIEX8, shared with x16 slot)

Expansion Slots (Chipset)

1× PCIe 4.0 x4 (PCIEX4, shared with M2L_SB)

M.2 (CPU)

1× PCIe 5.0 x4/x2 (22110)

1× PCIe 4.0 x4/x2 (22110)

M.2 (Chipset)

2× PCIe 4.0 x4/x2 (22110/2280)

SATA

8× SATA 6Gb/s total

RAID

RAID 0/1/5/10 for NVMe & SATA

USB (Rear)

2× USB4 Type-C (TB5)

2× USB 3.2 Gen1

6× USB 3.2 Gen2 Type-A

USB (Internal)

1× USB4 (TB4) Type-C

2× USB-C Gen 2x2

4× USB 3.2 Gen1

4× USB 2.0/1.1

Internal I/O

24-pin ATX, 2× 8-pin CPU power

CPU fan, pump headers

4× system fan + 2× pump/system fan

3× ARGB Gen2, 1× RGB header

4× M.2 connectors

8× SATA ports

Front panel, audio, TPM, USB headers

Q-Flash Plus button

Back Panel

1× DP-In

1× HDMI

2× TB5 Type-C

2× USB 3.2 Gen1

6× USB 3.2 Gen2 Type-A

2× 10GbE LAN

Wi-Fi antenna ports

2× audio jacks

I/O Controller

iTE Controller

Monitoring

Voltage, temp, fan, pump, noise detection

BIOS

256 Mbit AMI UEFI BIOS

Features

GCC, Q-Flash, Q-Flash Plus, Smart Backup

Software

Norton Internet Security, LAN management

OS Support

Windows 11 64-bit (24H2+)

Form Factor

E-ATX, 30.5 × 28.5 cm
