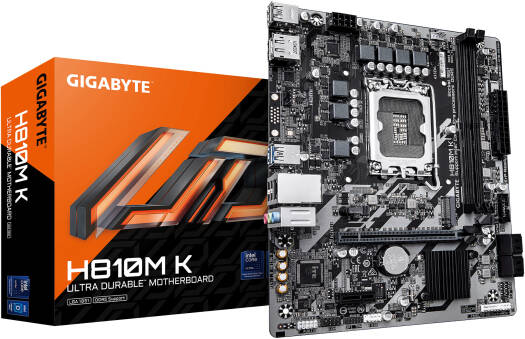

GIGABYTE H810M K LGA 1851 M-ATX Intel Motherboard, Intel H810 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 1x PCIe 4.0 M.2 Slot | H810M-K

CPU

LGA1851; Supports Intel® Core™ Ultra Processors

Chipset

Intel® H810 Express

Memory

2 x DDR5 DIMMs, up to 128GB, up to 6400 MT/s; Dual channel; ECC (non-ECC mode), XMP

Graphics

Integrated Intel® HD Graphics; 1 x DP (3840x2160@60Hz), 1 x HDMI (4096x2160@60Hz)

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio

LAN

Realtek® GbE LAN (1Gbps)

Expansion Slots

1 x PCIe x16 (CPU, Gen4)
1 x PCIe x1 (Chipset, Gen3)

Storage

1 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s; RAID 0/1/5/10 for SATA

USB

Back Panel: 2 x USB 3.2 Gen1, 4 x USB 2.0
Internal: USB 3.2 Gen1 header, USB 2.0 header

Internal I/O

24-pin ATX, 8-pin ATX12V, CPU/system fan headers, 1 x M.2, 4 x SATA, TPM, COM port, Clear CMOS

Back Panel

1 x DP, 1 x HDMI, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Monitoring

Voltage, temperature, fan speed, water flow, fan fail, fan speed control

BIOS

256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Features

GIGABYTE Control Center, Q-Flash, Smart Backup

Software

Norton® Internet Security (OEM), LAN management

OS Support

Windows 11/10 64-bit (NPU driver only for Windows 11)

Form Factor

Micro ATX; 22.6cm x 18.5cm
