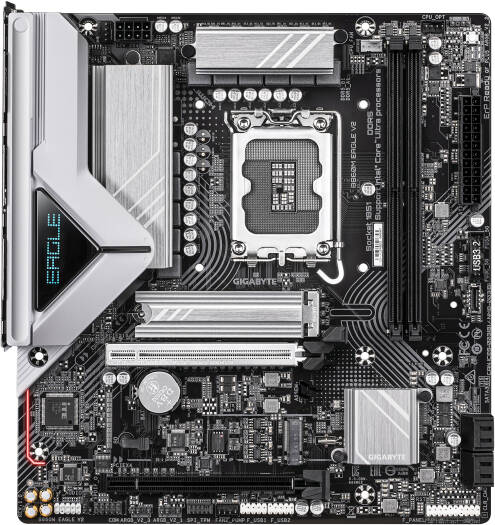

GIGABYTE B860M Eagle V2 LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B860M-EAGLE-V2 - Image 1
1 / 4

GIGABYTE B860M Eagle V2 LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B860M-EAGLE-V2

Brand: Gigabyte|Category: Motherboards|SKU: 10427|Model: B860M-EAGLE-V2
AED 575.00

  • Supports Intel® Core™ Ultra processors (Series 2) | Digital 6+1+2 phases VRM solution

  • Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support

  • D5 Bionic Corsa for Infinite Memory Performance

  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users

  • EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU

LGA1851 socket, supports Intel® Core™ Ultra Processors

Chipset

Intel® B860 Express Chipset

Memory

2x DDR5 DIMM sockets, up to 128GB, Dual Channel, ECC/Non-ECC, XMP support, up to DDR5-9066(O.C)

Onboard Graphics

Intel® HD Graphics; HDMI 2.1 (4096x2160@60Hz), DP 2.1 (3840x2160@144Hz)

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out

LAN

Realtek® 2.5GbE LAN

Expansion Slots

1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset)

Storage

1x M.2 (PCIe 5.0), 1x M.2 (PCIe 4.0), 4x SATA 6Gb/s, RAID 0/1/5/10

USB Ports

Rear: 3x USB 3.2 Gen 1, 3x USB 2.0; Internal: 1x USB-C Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0

Internal Connectors

Power: 24-pin + 8-pin ATX
Cooling: 4 fan/pump headers
Others: 3x RGB, 2x M.2, 4x SATA, front audio, TPM, serial, Q-Flash, Clear CMOS

Back Panel

1x PS/2, 1x HDMI, 1x DP, 3x USB 3.2, 3x USB 2.0, 1x RJ-45, 3x audio jacks

I/O Controller

iTE® I/O Controller Chip

Monitoring

Voltage, temperature, fan speed, flow rate, fan fail warning, fan control

BIOS

256Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus

Features

GIGABYTE Control Center, Smart Backup

Software

Norton® Internet Security OEM, LAN software

OS Support

Windows 11/10 64-bit (NPU driver only on Win 11)

Form Factor

Micro ATX, 24.4 x 22.5 cm
