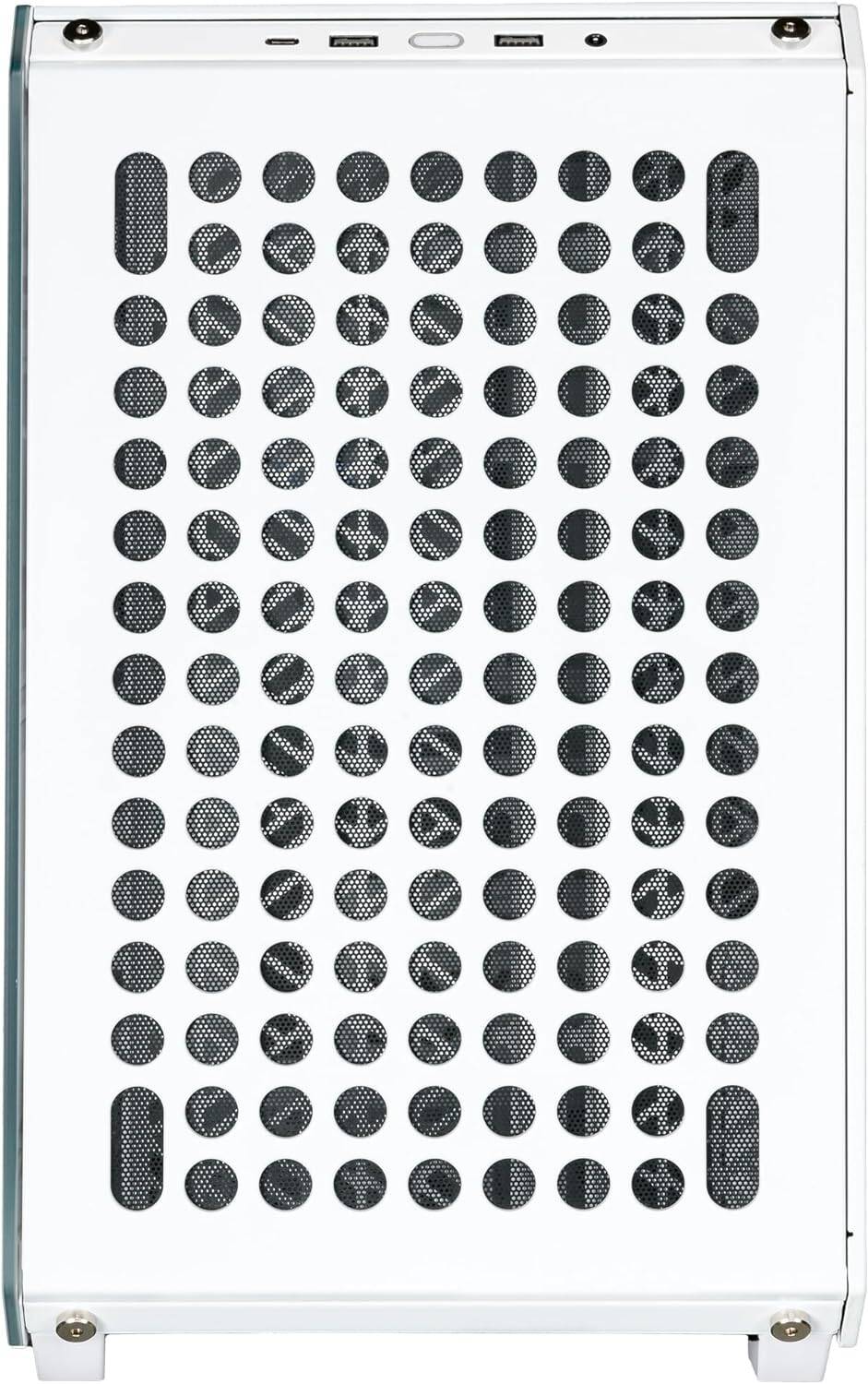

Cooler Master QUBE 500 Flatpack Mid-Tower ATX Computer Case, 1x 120mm SF ARGB White PWM Fan, Up to 280mm Radiator & 8x Fan Support, Steel, Plastic, TG Materials, White | Q500-WGNN-S00

Model Number

Q500-WGNN-S00

Exterior Color

White

Materials - Exterior

Steel, Plastic, TG

Materials - Left Side Panel

Grey TG + Steel

Dimensions (L x W x H)

406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions)

Volume

33.44L (excl. Protrusions)

Motherboard Support

ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273mm w/ ATX PSU)

Expansion Slots

7

3.5" Drive Bays

4

2.5" Drive Bays

3

I/O Panel - USB Ports

2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C

I/O Panel - Audio In / Out

1x 3.5mm Combo

Pre-installed Fans - Rear

1x 120mm (1800 RPM) SF Black PWM (Black), 1x 120mm (1800 RPM) SF White PWM (White)

Fan Support - Front

1x 120/140mm (x2 if PSU is mounted in bottom)

Fan Support - Top

2x 120/140mm

Fan Support - Rear

1x 120mm

Fan Support - Bottom

2x 120/140mm

Fan Support - Left side

2x 120/140mm

Radiator Support - Front

120/140 mm (240/280mm w/ PSU in bottom)

Radiator Support - Top

120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)

Radiator Support - Rear

120mm

Radiator Support - Bottom

120 / 140 / 240 / 280mm

Radiator Support - Left side

120 / 140 / 240 / 280mm

Clearance - CPU Cooler

164mm-172mm (Remove the water cooling bracket)

Clearance - PSU

173mm to first GPU slot, 216mm max space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)

Clearance - GFX

365mm

Cable Routing - Behind Motherboard Tray

29-32mm

Handle

Black x 1 (Flatpack), Grey x 1 (White)

Gem Mini

Black x 1 (Flatpack), Grey x 1 (White)

Dust Filters

Front, Top, Bottom, Right side

Power Supply Support

SFX / SFX-L / ATX

Size

Mid Tower

Series

QUBE Series

Back Connector Motherboard Support

No
