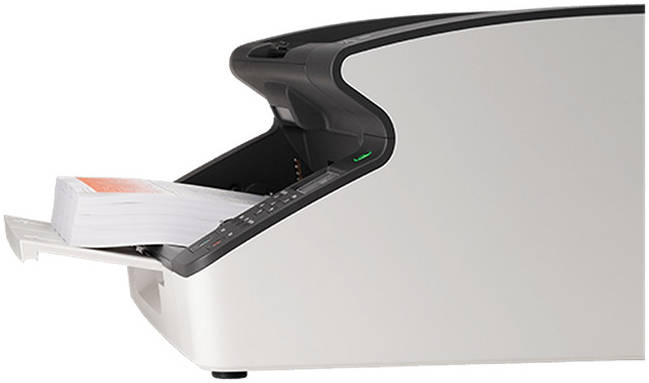

Canon ImageFORMULA DR-G2140 Scanner, 500 Sheets ADF, 145 PPM Simplex / 290 IPM Duplex Scan Speed, 600 DPI Resolution, Staple Detection, Black/White | 3149C003AB

Type

A3 Desktop Type Sheet Fed Scanner

Scanning sensor unit

CIS

Optical resolution

600dpi

Light source

RGB LED

Scanning side

Simplex, Duplex, Skip blank pages

Interface

USB 3.1/ Wired LAN

Dimensions (W x D x H)

Tray Closed : 480 (W) x 569 (D) x 315 (H)mm
Tray Open : 480 (W) x 723 (D) x 390 (H)mm

Weight

Appox. 25.0kg

Power requirements

AC 220-240V (50/60Hz)

Power Consumption

Scanning: 66.5 W
Sleep mode: 3.5 W or less

Operating Environment

10 - 35°C (50 - 95°F), Humidity: 20 - 80% RH

Noise

54 dB

Environmental compliance

EPEAT Gold certified*

Scanning specifications

Black and White

145ppm/290ipm (A4, Landscape, 200dpi/300dpi)

Colour

145ppm/290ipm (A4, Landscape, 200dpi/300dpi)

Output resolution

150 x 150dpi, 200 x 200dpi, 240 x 240dpi,
300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Output mode

Detect Automatically, Black and White,
Error Diffusion, Active Threshold,
Advanced Text Enhancement,
Advanced Text Enhancement II,
256-level Grayscale, 24-bit Colour

Suggested Daily Duty Cycle

From 70,000 further scans/day

Document specifications

Width

50.8 - 305 mm

Length

70 - 432 mm

Thickness

Continuous Feeding: 20 - 209g/m2, 0.04 - 0.25 mm
Non-Separation Mode: 20 - 255g/m2, 0.04 - 0.03 mm

Long document mode

5,588mm max

Paper separation

Retard Roller and Pre-separation method

Feeder capacity

500 sheets
